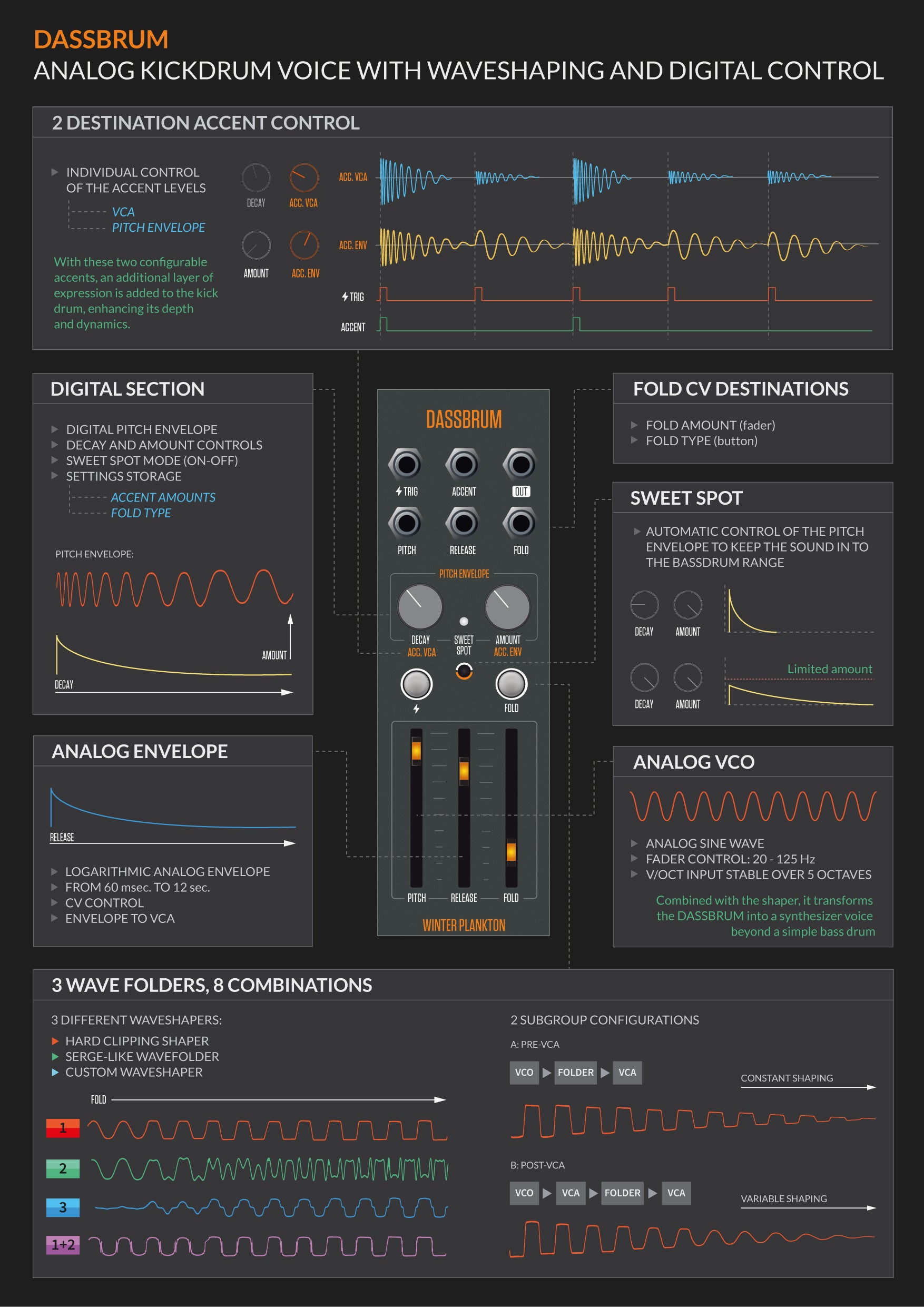

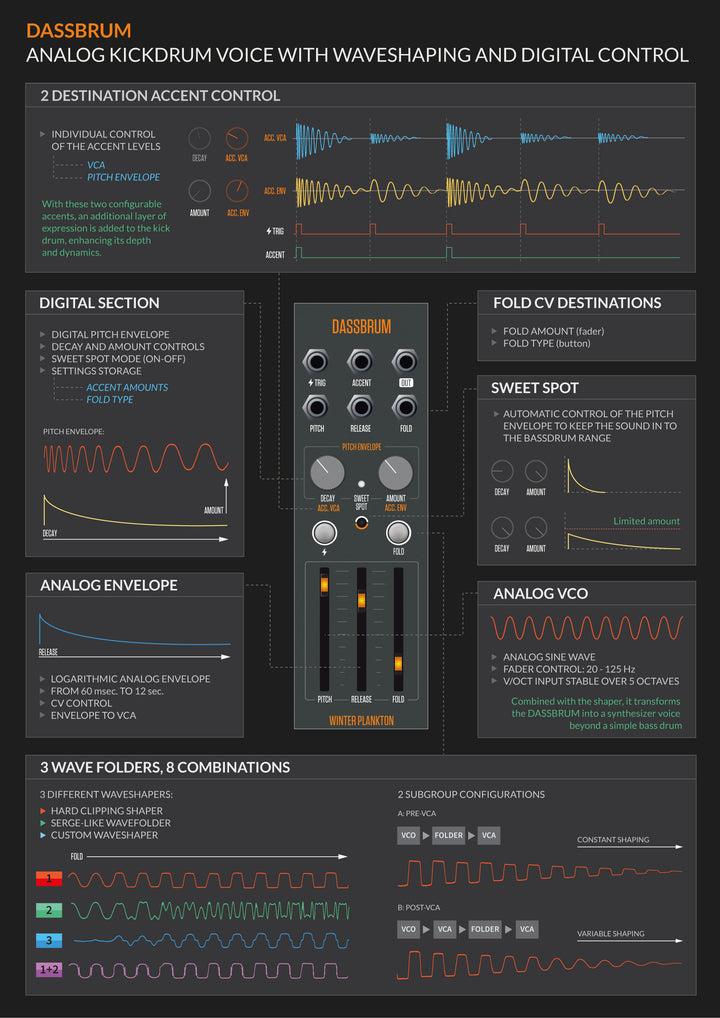

DASSBRUM is a powerful kick module capable of producing a wide variety of sounds, ranging from classic kick tones to complex folded timbres. It features an analogue core processed through a digitally controlled matrix of analogue wave folders and envelopes, offering deep sonic flexibility in a compact 8HP form factor. A built-in sweet spot mode ensures optimal pitch envelope relationships for consistently punchy and dynamic kicks.

User Manual

Modular Grid

FEATURES

• Analogue Oscillator with precision tracking (V/oct) in the 0-6V range
• Digital recall of various folding architectures via panel button or CV
• Sweet spot mode to maintain optimal Pitch Envelope Decay and Pitch Envelope Amount relations for the perfect kick sound
• Accent headroom adjustment for both the VCA and Pitch Envelope Amount, offering dynamic response control
• Waveshaping. 3 different waveshapers combined to produce 8 sound variations, from classic clipped sounds to complex wave folding.

SPECS

Consumption: 120mA +12V /30mA -12V

• Width: 8HP

• Depth: 29mm

• INPUTS MAXIMUM RATINGS

• FOLD TYPE (rear switch): 0/5V

• TRIGGER IN: 5V (>0.5V)
• OTHER INPUTS: -5/10V
