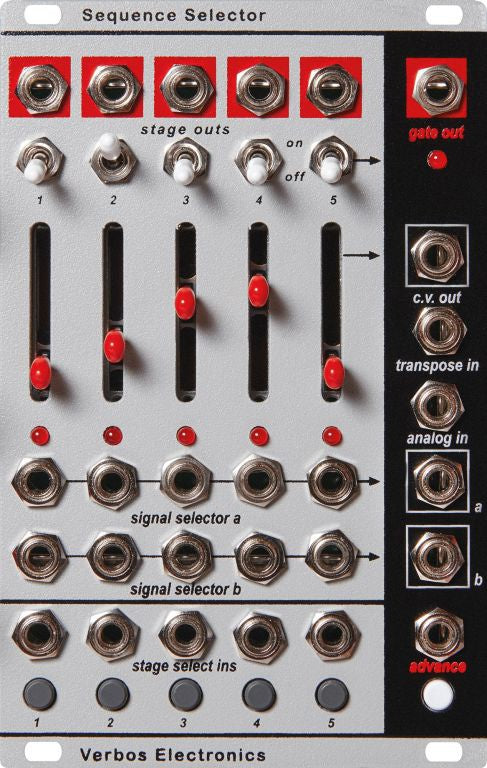

A 5 stage analog sequencer with the ability to transpose the sequence with an external voltage applied to the transpose input. Also, signals can be routed and selected with two 5:1 selectors. Any stage can be jumped to with stage select inputs and front panel buttons or selected with analog voltage.

• 16HP

• 50mA +12, 30mA -12
