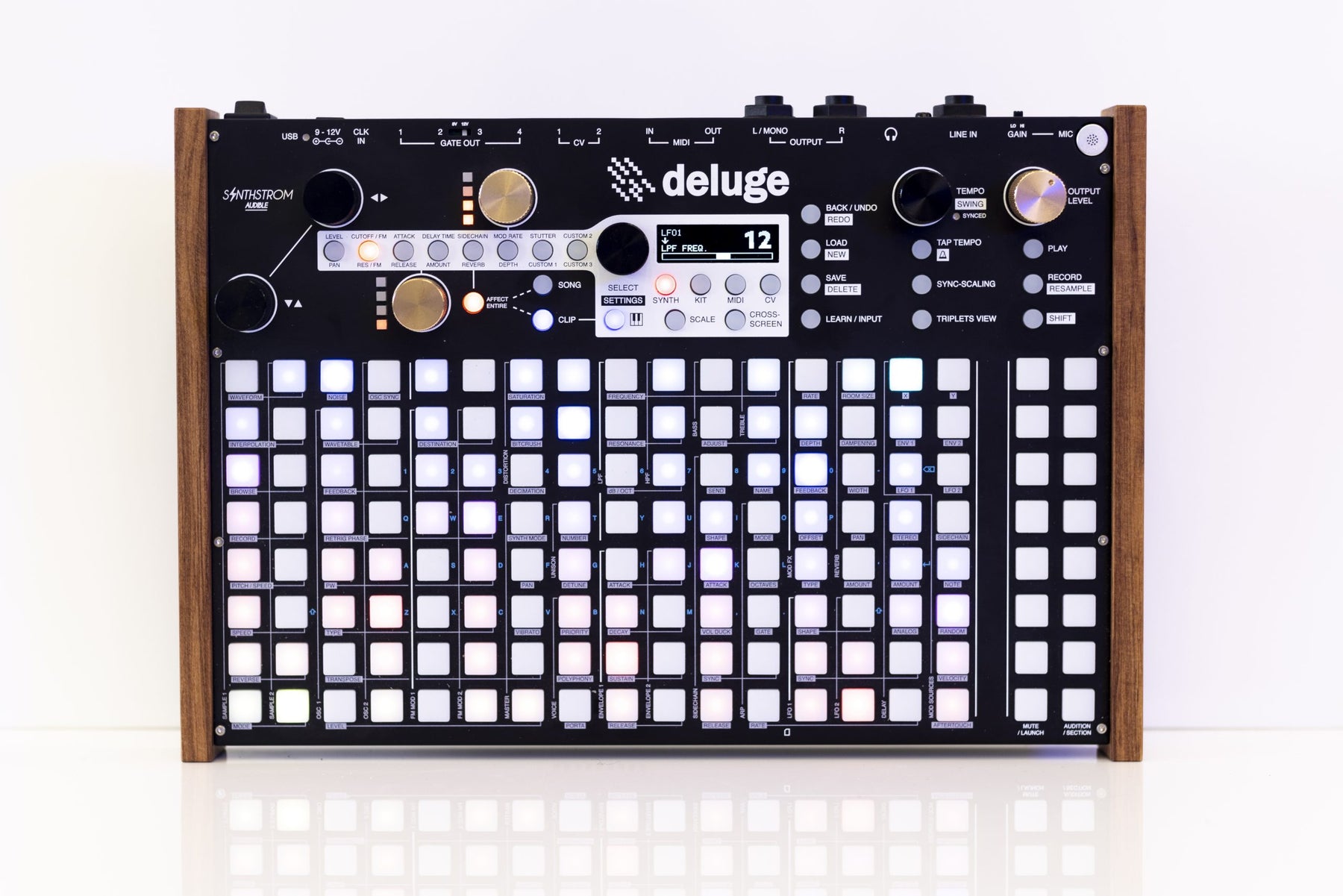

Powerful and robust synthesizer, sampler & sequencer in a portable package

Deluge is our flagship product. Three years in the making, it is an all-in-one, stand-alone, portable synthesizer, sequencer and sampler designed for the creation, performance and improvisation of electronic music.

SYNTHESIZER

• Full-featured internal synthesizer engine (subtractive, wavetable and FM)
• Polyphony limited only by CPU. Up to 64 synth voices may play simultaneously
• Live adjustment of synth and effect parameters with two endless-turn encoders with LED level-meters
  • Easy buttons to select the functions these control
• Parameter automation recording
• Full MPE support for connected MIDI controllers. MPE expression can control most parameters
• Arpeggiator
• Dedicated volume and tempo knobs
• LFOs and envelopes on each synth / sample. Highly customizable modulation matrix
• Synthesizer engine features LPF / HPF, FM, portamento, oscillator sync, ring modulation, unison detune, and more
• Four basic digital waveforms, two analog-modeled waveforms, or select any WAV file from SD card
• 12dB/oct and 24dB/oct filters, with optional filter drive mode
• FX including delay, reverb, chorus, flanger, phaser, bitcrusher, sidechain effect, live stutter, and more
• Keyboard mode, where the pads become a live instrument on a 2D grid
• Preset or custom scales, or chromatic mode
• Live processing of the audio input including polyphonic pitch shifting (according to sequenced notes), filters, and all FX

SEQUENCER

• Piano-roll-style sequencing on 128 full RGB pads (16×8) with scrolling and zooming
• Launch, mute and interact with tracks live
• Arranger view, to sequence your instrument parts into a longer composition, and work with audio clips similarly to a DAW
• Euclidean sequencing available, per row / sound.
• Sequencing limited only by device RAM (over 2 million notes)
• Resolution can be set as high as 6144th-notes
• Simultaneously output separate sequences to all 16 MIDI channels, 2 CV / gate channels and 2 additional gate outputs, in addition to internal synthesizers / samples (limited only by CPU)
• CC control and sequencing on all 16 MIDI channels
• MPE support – can record and play back MPE data from external sources, as well as internal synthesizer MPE features
• Probability and iteration based step / note conditions
• Undo / redo note and parameter automation editing and recording. Number of undo steps limited only by RAM
• Advanced syncing capabilities. Non-standard time signatures supported, polymetric
• Adjustable swing
• Horizontal pattern shift and note nudge, and note repeat
• MIDI program change and bank select messages may be output

SAMPLER

• Streams all samples directly from SD card, without limitations based on RAM size
• Upto 90 unaffected sample voices may play simultaneously
• Multisampling. Fast folder import with automatic pitch detection
• Time-stretching and pitch-shifting
• High quality sample interpolation and rate conversion via 16-point windowed sinc
• Waveform view on main pads, with scrolling, zooming, and loop point editing
• Same filters, modulation matrix and FX as synth engine
• Resampling
• Slicer feature for cutting a sample into evenly sized slices

AUDIO CLIPS AND LOOPING

• Live looping of audio and instrument / MIDI clips, including easy overdubbing / layering, and automatic tempo setting
• Audio clip live looping includes option to record additional audio “margins” either side of loop (from before you even pressed record), to allow a brief crossfade to eliminate click at loop point

CONNECTIVITY

• Two ¼” line outputs, and 3.5mm headphone output
• 3.5mm mic input, ¼” line input, and built-in microphone
• 2x CV outputs. 0 – 10V, individually configurable to between 0.01 and 2.00 volts per octave, or to hertz-per-volt
• 4x gate / trigger outputs individually configurable to v-trig or s-trig, with shared voltage switchable between 5V and 12V
  • Trigger clock output, configurable up to 192 PPQN
  • Trigger clock input, also with adjustable PPQN
• MIDI input and output via hardware connectors or USB. Syncing via MIDI beat clock as leader or follower. Optimized for very low jitter
• Powered via USB B (cable included) or 9 – 12V centre-negative (pedal-style) power supply (500mA) (not included)
• Can host USB MIDI devices via B-to-B cable – up to 4 if using a USB hub. Only powers these devices when powered by 9 – 12V supply
• User-upgradeable firmware – development is ongoing at Synthstrom Audible
• Internal speaker
• Rechargeable Li-ion battery (6+ hours of operation)
• 1 x SD slot (1x 32GB V10-speed SD card supplied)

DIMENSIONS

• Dimensions: 305mm x  208mm x 46mm (12 x 8.2 x 1.8 inches)
• Weight: 1.5kg
