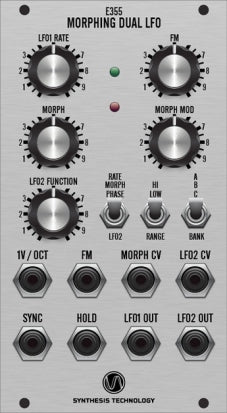

The Synthesis Technology E355 is a dual LFO (Low Frequency Oscillator) with the ability to morph
(continuously alter) the output waveshape.

The second output (LFO2) can have independent rate,  waveshape or phase relative to LFO1.

There are 68 basic waveshapes that allow over 10,000 morphed
waves.

The module has both SYNC (reset wave) and HOLD (‘freeze’ wave).

Technical Details

»  Eurorack Format
»  14HP
»  CV Inputs: -5V to +5V, DC to 8KHz.
»  Frequency range (Bank A and C): LOW (12min/cycle – 2Hz)  HIGH (8sec/cycle to 124Hz)
»  Frequency range (Bank B at 8x settings): LOW (1.5min/cycle -16hz)  HIGH (1Hz – 1020Hz)
»  Supports both MOTM/FRAC 4-pin and Euro Ribbon Cables
»  Power supply range: +-9V to +-15V
»  Power supply current (typical): -12V @12ma +12V @ 32ma
