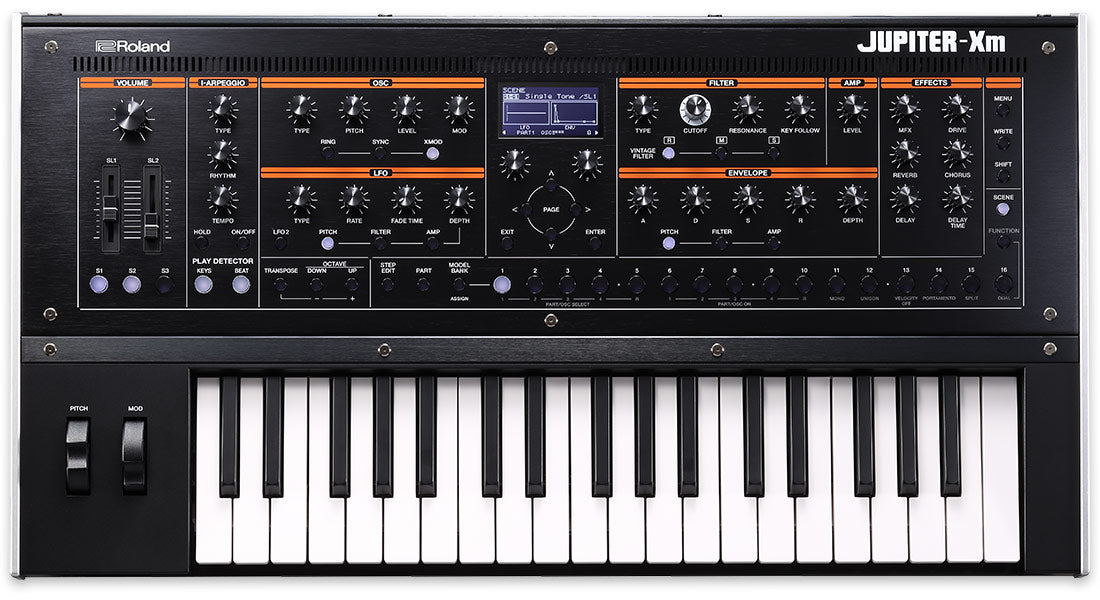

JUPITER-Xm may redefine what you think a synthesizer can be. It has a universe of sounds, expanding all the time. It can jam with you, inspire you, and capture your ideas. It can go just about anywhere, and it doesn’t need any cables or wires to function—not even for power. The JUPITER-Xm is an entire electronic production and performance environment that you can put under one arm. Where you take it, is up to you.
SPECIFICATIONS
Keyboard37 Keys (compact type with velocity)Sound GeneratorZEN-Core
Various MODEL sound generatorsParts5 parts (Play part: 4, Rhythm part: 1)TonesPreset tone: 4,000 or greater
User tone: 256
Drum Kit: 90 or greaterScene256EffectsMulti-Effects: 4 systems, 90 types
Part EQ: 5 systems
Overdrive
Reverb: 7 types
Chorus: 4 types
Delay: 5 types
Mic NS / Comp
Master EQ / CompArpeggiatorI-ARPEGGIO (Multi parts arpeggiator with playing detection)Arpeggio Parts5 partsControllersPitch Bend Wheel
Modulation Wheel
Assignable Slider x 2
Assignable Switch x 3BluetoothVer 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)DisplayGraphic LCD 128 x 64 dotsSpeaker Amplifier Power Output4 W x 2SpeakersFull range (3.5 x 8 cm) x 2
Tweeter 2 cm x 2ConnectorsHEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
MAIN OUT jacks (L/MONO, R): 1/4-inch phone type
MAIN OUT jacks (L, R): XLR type
MIC INPUT jack: 1/4 inch phone type/XLR type
AUX INPUT jack: Stereo miniature phone type
HOLD PEDAL jack
CONTROL PEDAL jack
MIDI connectors (IN, OUT)
USB COMPUTER port (AUDIO/MIDI)
USB MEMORY port
DC IN jackExternal MemoryUSB Flash drive (sold separately)Power SupplyDC 12 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8Current Draw1,500 mAAccessoriesOwner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor (PSB-5U)
Power cordOptions (sold separately)Pedal Switch: DP series
Expression Pedal: EV-5
USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
SIZE AND WEIGHT Width 576 mm
22-11/16 inches Depth308 mm
12-1/8 inches Height93 mm
3-11/16 inches Weight (excluding AC adaptor, Batteries)4.4 kg
9 lbs 12 oz
