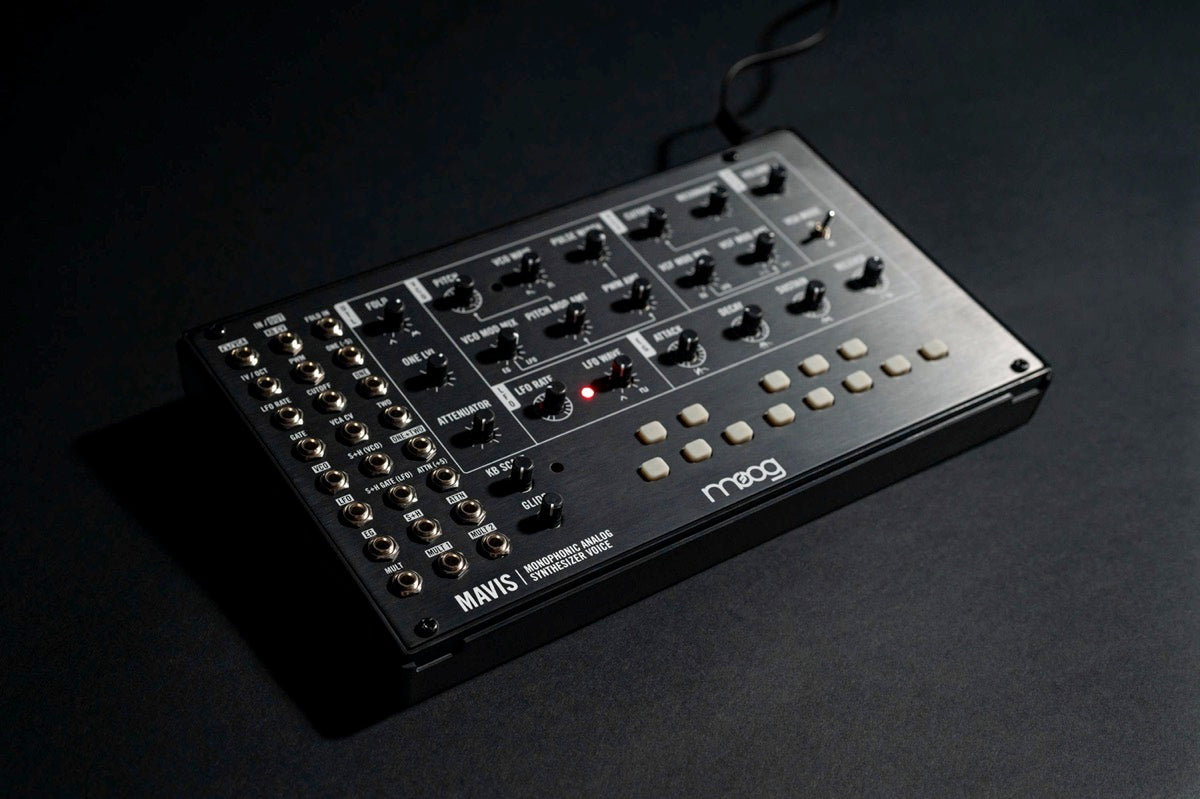

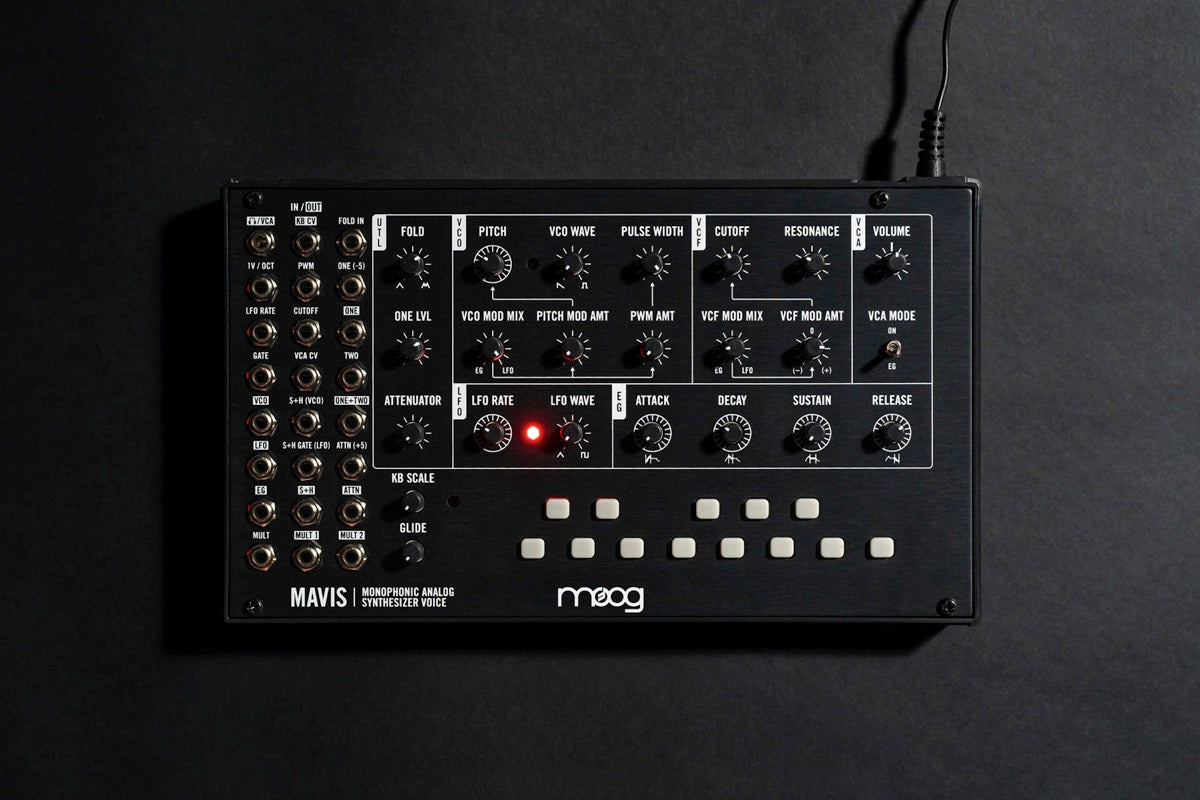

Mavis is a build-it-yourself analog synthesizer kit that
delivers the huge depth of sound Moog is known for in
a compact and feature-packed instrument. Assembly is
extremely simple; users of any skill level can quickly
assemble their own analog synthesizer with minimal
tools and experience. Perfect for first time users and
established synthesists alike, Mavis’ semi-modular
design and 1-octave keyboard will get you started mak-
ing sound immediately without the need for additional
equipment (except for a speaker or headphones).

As a stand-alone instrument, Mavis is a straightforward
analog synthesizer with patchable modular utilities and
the unmistakable Moog sound and quality. Easily
remove Mavis from its case and it becomes a 24-point
CV controllable module (44HP) ready to be installed
into your Eurorack system or alongside Moog’s other
semi-modular instruments.

Mixing the familiar with the exotic, Mavis features
Moog’s legendary oscillator and filter circuits alongside
a diode wavefolder – the first analog wavefolder to
appear on a Moog instrument. Combining traditional
subtractive synthesis with additive wavefolding and
oozing with personality, Mavis’ clever presentation of
synthesis modules and utilities ensure deep creative
synergy and musical connection.

Mavis is a powerful, fun, and low-cost Moog that makes
learning synthesis or expanding an already-advanced
studio setup approachable for anyone looking to
explore classic analog sound in a new way.

TECHNICAL SPECS

• Operate standalone or as a 44HP Eurorack module

• Analog Voltage Controlled Oscillator (VCO); Mixable
Saw/Square

• Analog –24dB Moog Low Pass Ladder Filter

• 4-Stage Analog Envelope Generator (EG)

• Diode Wavefolder

• Analog Low Frequency Oscillator (LFO); Mixable
Triangle/Square

• Pulse Width Modulation

• Modular Utilities (Attenuators, Offsets, Mults, and a
flexible DC-coupled Mixer)

• Sample and Hold

• Analog Voltage Controlled Amplifier (VCA)

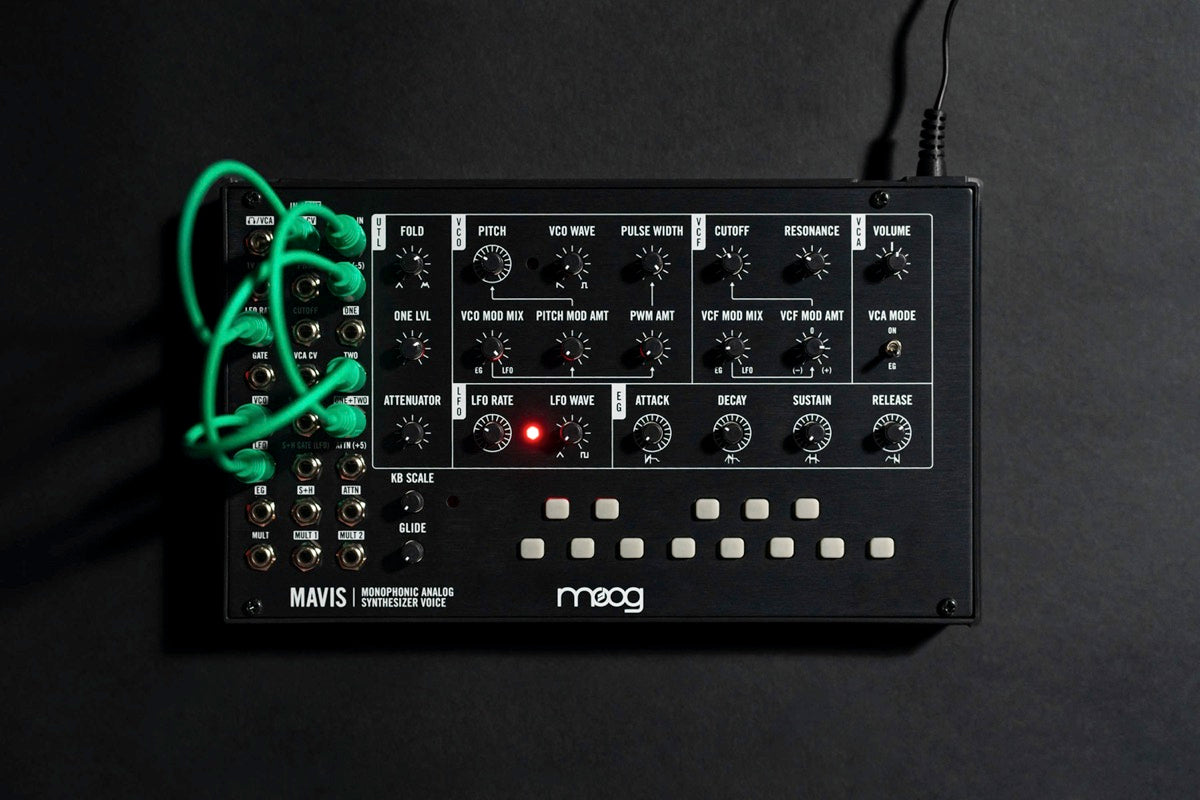

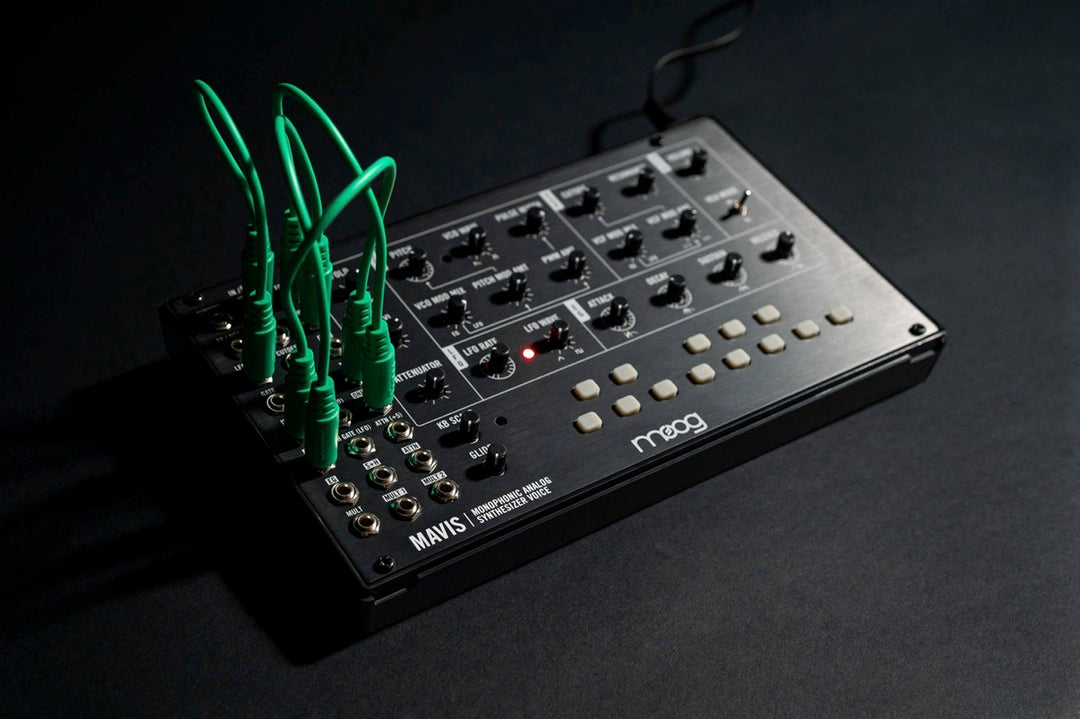

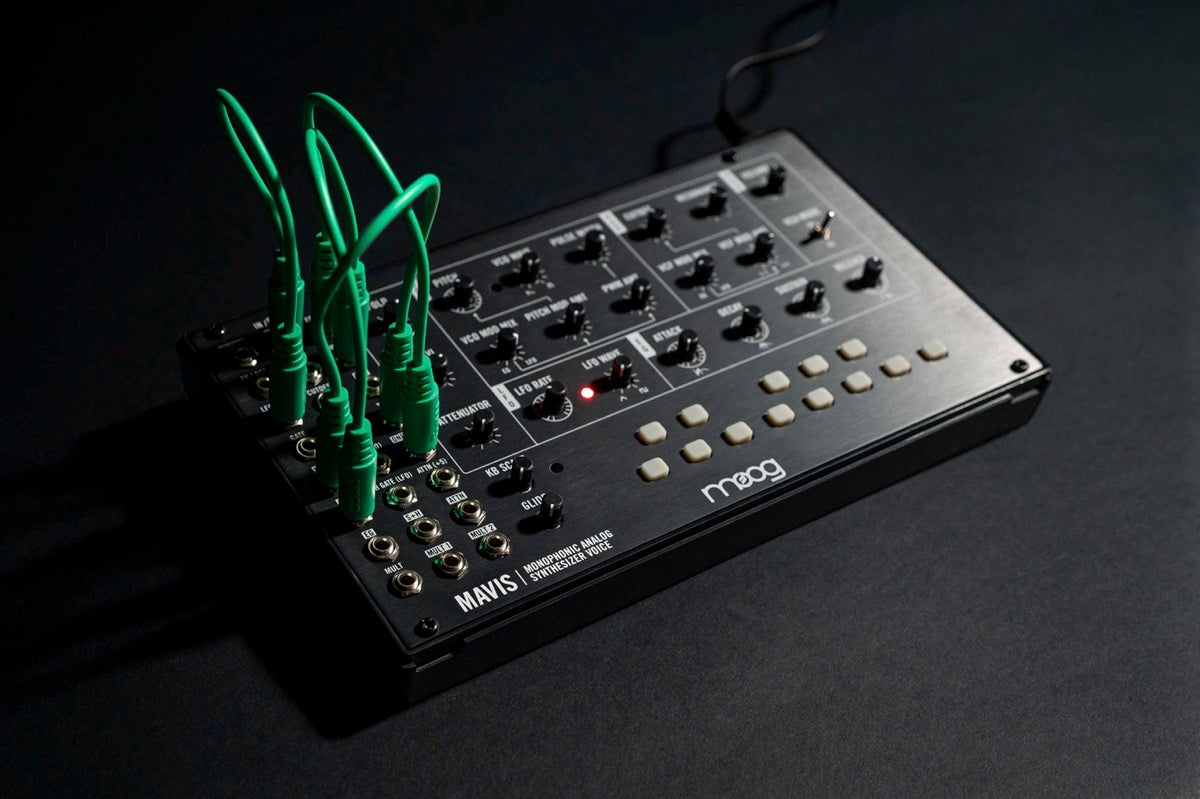

• 24-Point Patch Bay (3.5mm)

• 1 Octave Keyboard with Glide and Scaling

• 3.5mm Output

IN THE BOX

• Assembly Instructions and
Quickstart Guide

• Patch Overlays

• Product Catalog

• Registration Card

• Mavis Synthesizer Kit:
— PCB
— Front Panel
— Bottom Enclosure

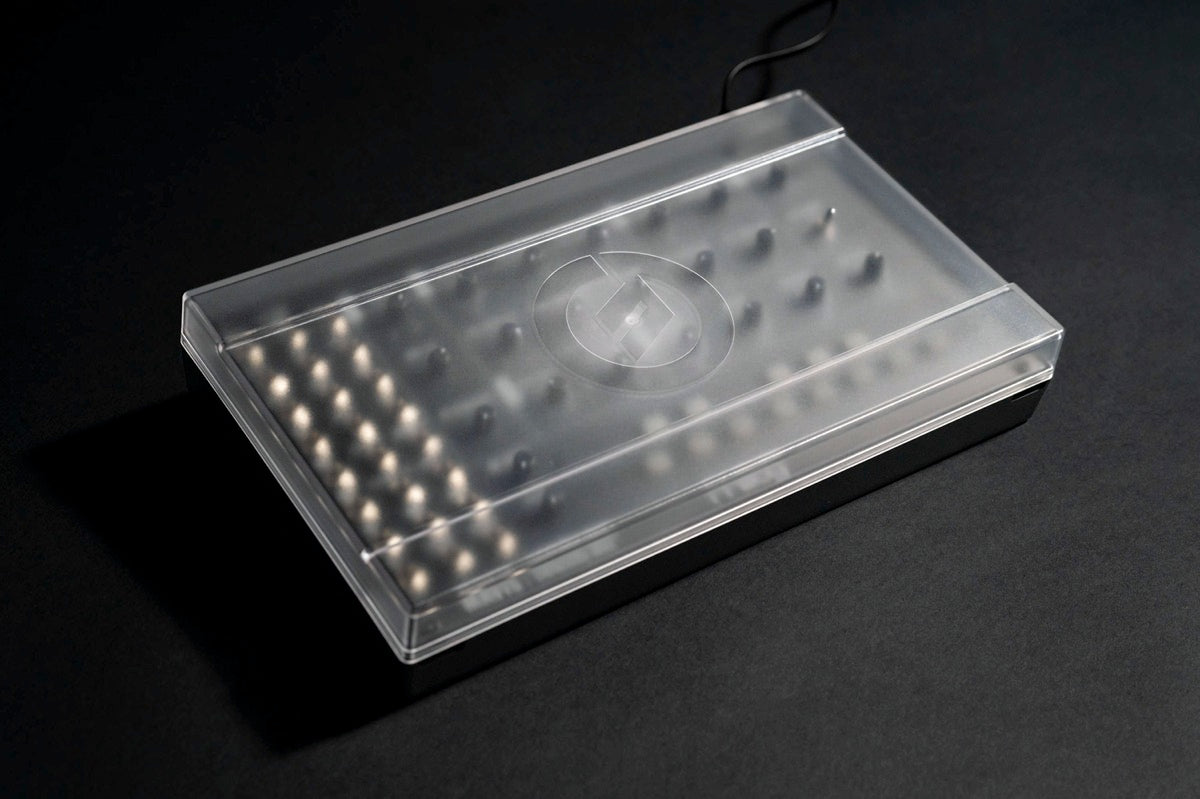

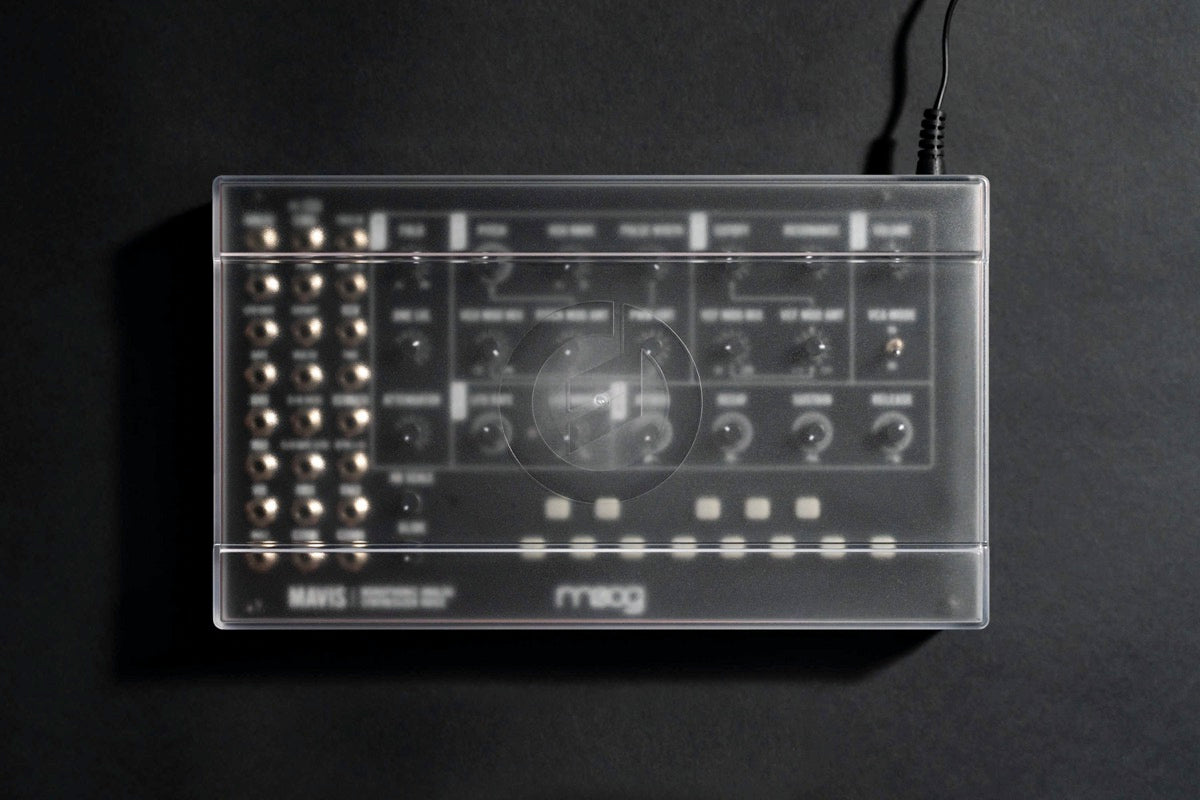

— Protective Cover
— Power Supply
— Nut Driver
— Calibration Tool
— Fastener Kit
