BULLET POINTS

• ●  Mono, duo, and 4-note paraphonic playability

• ●  Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats

• ●  256 step sequencer w/ up to 4 notes per step and 12 stored patterns. (Can be

  decoupled from Matriarch to independently sequence external gear)

• ●  Arpeggiator with selectable modes (Order, Forward/Backward, Random)

• ●  Semi-modular analog synthesizer - no patching required

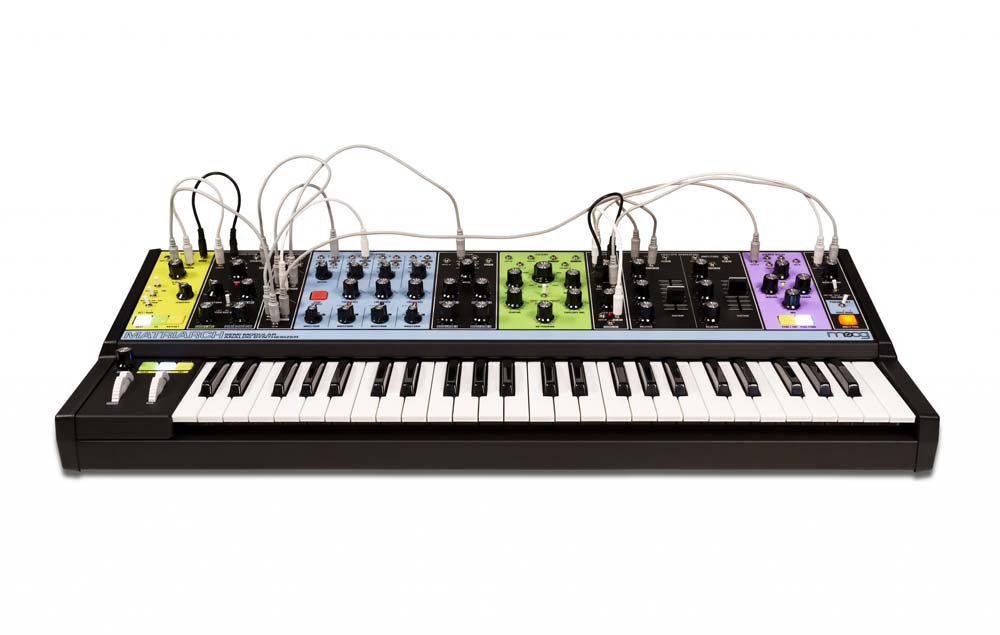

• ●  90 modular patch points for endless exploration

• ●  Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch

• ●  4 analog oscillators w/ selectable waveshape and hard sync per-oscillator

• ●  Full-range analog LFO with 6 selectable waveshapes

• ●  Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes

  available

• ●  Dual analog ADSR envelopes

• ●  Dual analog VCAs

• ●  3x bipolar voltage controlled attenuators with ring mod capability

• ●  2x4 parallel wired unbuffered mults

• ●  Additional simple analog LFO useful for adding modulation to delay, filters and VCAs

• ●  1/4“ external audio input for processing guitars, drum machines, and more through

  Matriarch’s analog circuits

• ●  Stereo 1⁄4” and 3.5mm Eurorack level audio outputs




  MODULE PROVENANCE

• ●  Oscillators based on the Minimoog

• ●  Mixer based on the classic CP3 module

• ●  Filters based on the classic 904A module

• ●  Envelopes based on the classic 911 module

• ●  VCAs based on the classic 902 module

• ●  Analog Delay based on the MF-104M and 500 Series effects




  SPECS

• ●  TYPE - Semi-Modular Analog Synthesizer

• ●  SOUND ENGINE - 100% Analog

• ●  NUMBER OF KEYS - 49 Full-Size Keys

• ●  TYPE OF KEYS - Velocity-sensing with Aftertouch (Velocity and Aftertouch are not

  hard-wired – available via MIDI, KBD VEL OUT and KB AT OUT jacks)

• ●  OTHER CONTROLLERS - Pitch Bend, Mod Wheel, Variable Glide, Expression pedal in

  to CV out, and Sustain Pedal in

• ●  POLYPHONY - Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic

• ●  SOUND SOURCES - 4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3,

  and 4 support Hard Sync), White Noise Generator, External Input jack.

• ●  MIXER - 6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behavior

• ●  FILTERS - 24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP).

• ●  MOD SOURCES - Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square)

• ●  ENVELOPES - 2x Four-Stage ADSR with End of Envelope gate outputs

• ●  ATTENUATORS - 3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities

• ●  MULTS - 2x4 Parallel-wired Non-buffered Patch Points

• ●  VCAs - 2x discrete analog VCAs routed in stereo

• ●  EFFECTS - Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage

  controlled Mix, and independent L/R delay times, feedback, and I/O.

• ●  ARPEGGIATOR / STEP SEQUENCER - 256 Steps with up to 4 notes per step; 12

  Sequence locations

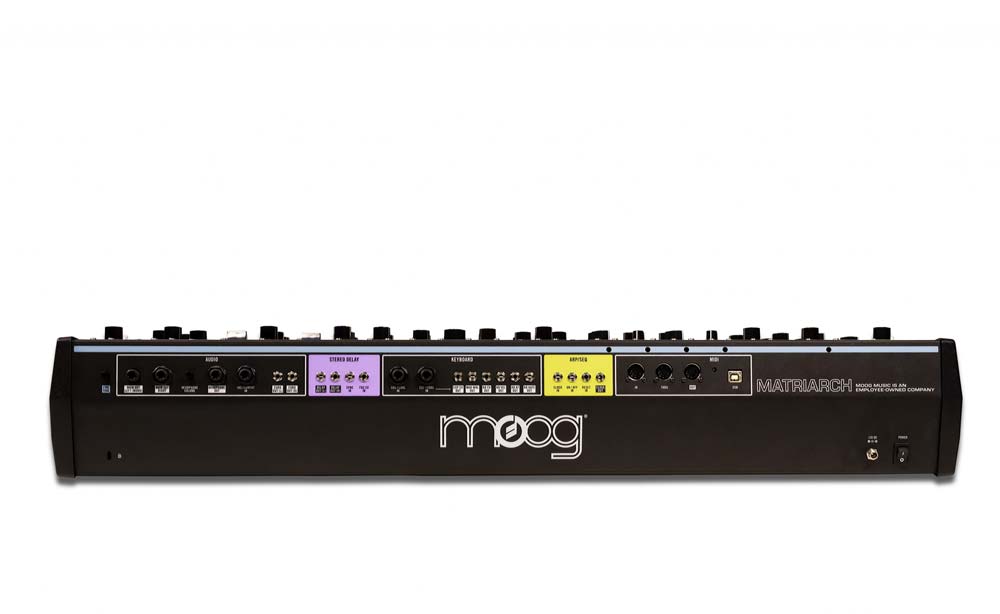

• ●  PATCH POINTS - 90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4

  Parallel-wired Mults.

• ●  PEDAL INPUTS - 1/4” Sustain, 1/4” Expression

• ●  AUDIO INPUT - 1/4” TS jack (Rear Panel)

• ●  AUDIO OUTPUTS - 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone

  jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm

  Delay outputs

• ●  MIDI I/O - 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)

• ●  DIMENSIONS - 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High

• ●  POWER - Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC,

  50/60Hz with screw-on barrel connector.

• ●  WEIGHT - 24lbs. / 10.89kg

• ●  ** Specifications Subject To Change Without Notice
