• Delay and looper
• Based on legendary ehx sixteen seconds delay from 1983
• Continuos recording in bypass vintage mode
• Reverse and double / half speed / time
• Up to 64 seconds recording time
• Tap tempo and continuos time / sample rate control
• Modulation for delay time / pitch
• Expression pedal input for sample rate

What tha....? Another pedal?? Really???
Well, in that case, congratulatons and big thanks to you!!
Now, in honour of our brand new friendship, let ́s talk a little...
We know you don't need all the finest crapology you see in a detailed manual but, let's face it: lately, your brain it's sending all sort of
signals and i'm not saying that you can't handle it, but...
Yeah, yeah, we know... just forget it and let's move on, ok?

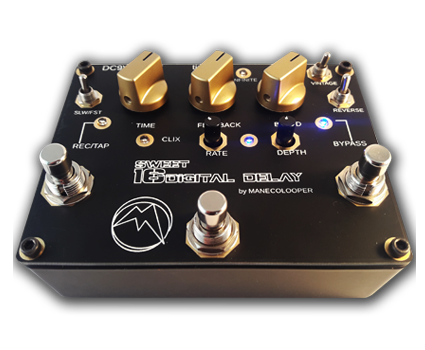

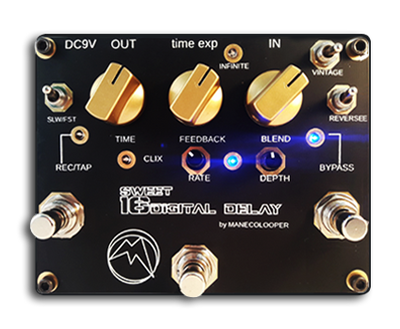

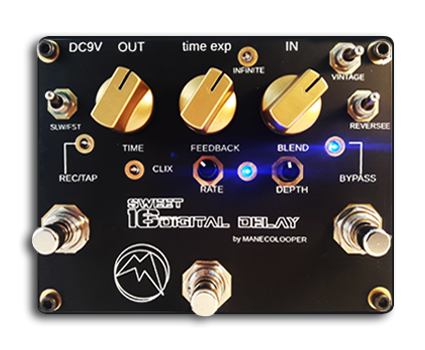

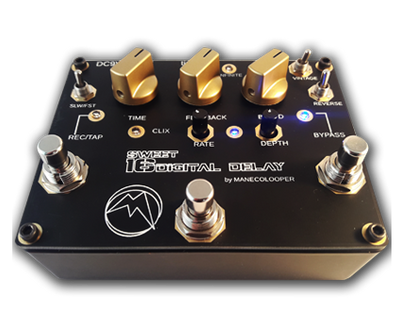

As you can see (since you're reading this, we assume you can see) the unit has several controlled features for your amusement and those are:

The Pot Class_

3_ TIME
4_ FEEDBACK 5_ BLEND

17_ RATE 19_ DEPTH

The Switch Class_

7_ VINTAGE

8_ REVERSE 10_ BYPASS
11_ SLOW/FAST 14_ REC/TAP 16_ INFINITE

Since every control and/or function is very self explanatory, let's take a look on possibilities and yeah, any way, we ́ll take cover on all those fancy and extra-complex names like "TIME" or "BLEND"...
Gimme a break...

EASY DELAY

Easy stands for...easy: insert the effect in your chain, put a signal trough the input, check that your INFINITE switch it's off and all your knobs @noon then stomp the bypass, and get some reps!
Yes!! How cool is that?? Set your tempo taping the REC/TAP switch even number of times. Use the TIME knob to fine adjust or just detune, FEEDBACK to set your reps and BLEND to set your wet (CW) dry (CCW) relationship all together and feel free to annoy yourself; 'cause we ́re just starting, you, pot head...

TASTY DELAY

See those little RATE and DEPTH pots? Well, it's modulation time and all happens in your reps. Play with them and find the subtleties off your inner voice... nop, no "that" voice...the other voice... Forget it. In the improbable case that you don't need the other voice, just turn your DEPTH down... Nop... no that depth... pedal's pot called DEPTH

INFINITE DELAY

Infinite? You mean like... forever? Bravo! You guess it all alone?? Once you get something interesting, you can keep it, that's it. Dammit, those bulletproof coffees finally are working your brain off. Impressive. Just step on it and enjoy, for the blood of all delays...

THA LOOP HOLE

And... here we go again. What are you lookin' at?
See that REC/TAP slightly above the extreme left(y) switch?
Well, THAT is the switch you're looking for. Bingo. If you are not familiarized with the regular and most common procedures tu record into some sort of device that have a recording function, we're done here, but... maybe (and let me reiterate here, maybe) you're that weird-still-inofensive blok submerged into all kind of esoteric matters waiting for an answer to the intangible and, if that's the case, oh boy, you touch our old frozen heart and your hidden light is about to jump in the next level.

Read carefully:
Set INFINITE to on, hit the REC/TAP switch, record up to 16 secs of your seminal glory, hit it again... Done.
No, no, no... please, don't bow, don't thank us...
let us we to be the thankful here... really.

THE TOGGLE SWITCH AFFAIRE

We try to avoid all the deep math involved in the process, but even that comes to an end, so sit down, grab your brand new über hyped japanese fountain pen and take note:

SLW/FST:
- If you record in SLW position, in FST you have

x2speedandpitch1octaveup.
- If you record in FST position, in SLW you have

1/2 speeeeed and piiiiiitch 1 octave dooooown .

REVERSE:
Despite and beyond if you're in SLW or FST, switching to REVERSE

?thgir looc ,sdrawkcab gnihtyreve stup
When REVERSE is on (upward) your delayed/recorded signal will be

instantly reversed. Then, every layer you add will respect the current toggle posi�on as normal, wich means when you flip the switch,
the reversed will be un-reversed and the un-reversed will be reversed and the world will end. Fact.

VINTAGE:
Ah! Our pièce de résistance for psychopaths like you.
Engage (right side) and record something in "blind mode" while the effect is bypassed and then, open the holy gates to see whats behind those clouds of mystery. Yeeeah, mostly, obscene stuff beyond all millenial correctness; not because you wanted, but because
you needed, indeed.

Luckily, when that switch is not engaged, you still are a psycopath. You have our word.

SOME DATA FOR YOUR EYES ONLY:
- MAXIMUM DELAY/REC TIME: 30 seconds in FAST mode (whaaat!!??) - POWER: 9V DC
- POLARITY: Negative center
- CURRENT CONSSUMTION: 80mA
- WATERPROOF, BEERPROOF, RAINPROOF: Nop
- TASTLESS: N/A
- WARRANTY: Well, if you insist, 3 years
