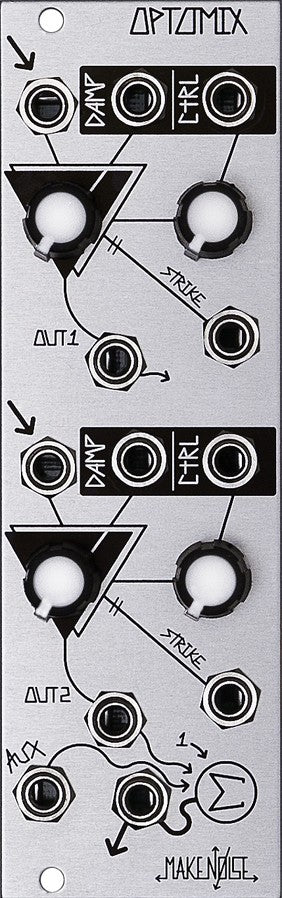

A two channel Low Pass Gate, providing simultaneous voltage control over amplitude and frequency content of a signal. It is in essence, a Voltage Controlled Filter Amplifier (VCFA) that has an extremely organic response to control signals. The Low Pass Gate is a classic West Coast synthesis circuit.

• DAMP parameter programs how low pass gate responds to falling control transient, continuously variable from long, slow and ringing to short, fast and muted

• STRIKE INput allows use of Gate signal to trigger Low Pass Gate circuit, "plucking" or "striking" the vactrol

• DAMP and STRIKE parameters combine to allow for easy programming of percussive sounds (sharp Attack w/ Voltage Controlled Decay)

• Summing stage with an AUXiliary IN allows for chaining of multiple units creating larger mixes

• Direct coupled, process audio or control signals

• Utilizes 4 vactrols

• Pairs well with modDemix modDemix and MATHS

Specifications

• Width:
  8hp
• Max Depth:
  24mm
• Power:
  25mA@ +12V
  25mA @ -12V
