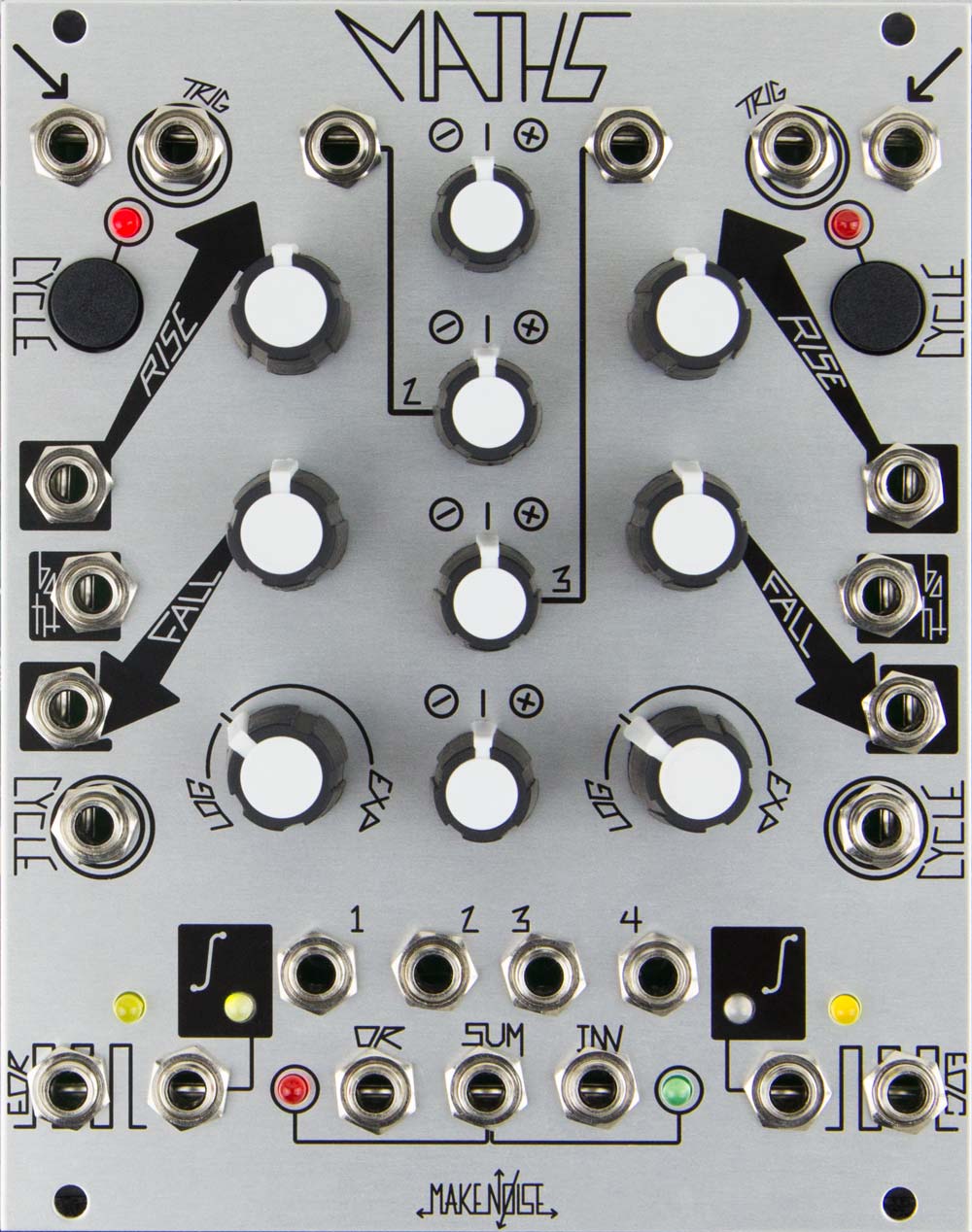

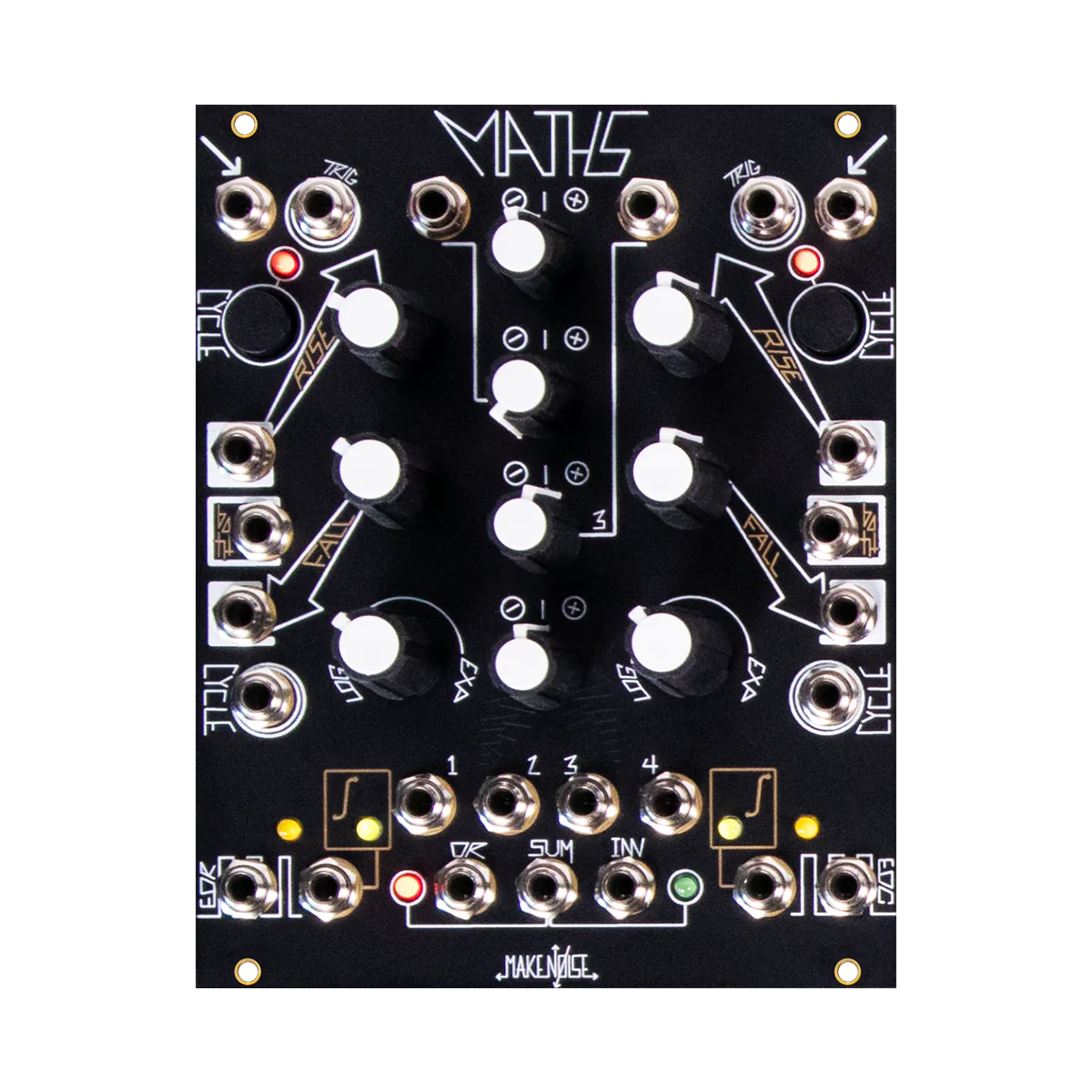

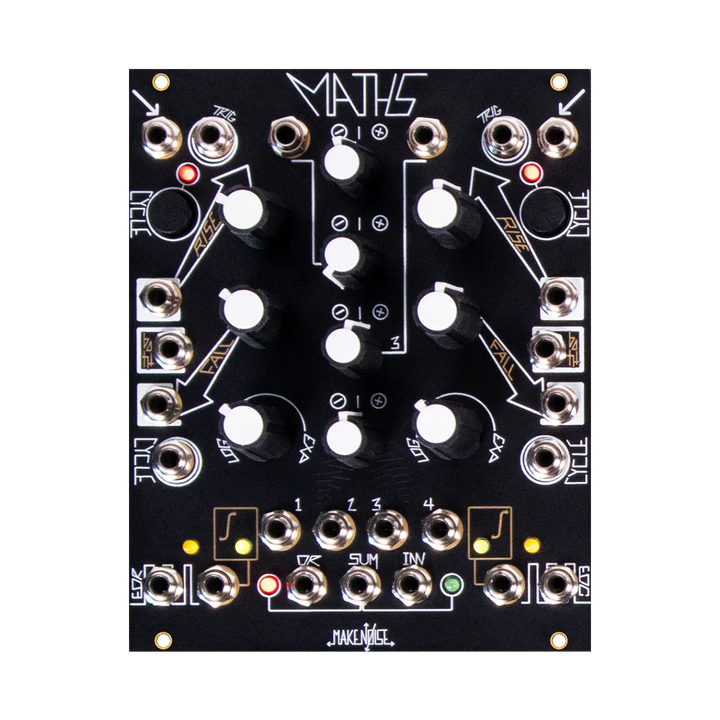

MATHS builds on the tradition set into motion in the 1960's when Don Buchla adapted circuits found within analog computers for musical purposes. Buchla's Algebraic Processor, Model 257 and 281 changed the way music synthesizers utilize control voltages. MATHS continues this great tradition of sculpting the control signals we use to sculpt our sound signals.

• Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

• Integrate an incoming signal

• With no signal applied, generate a variety of linear, logarithmic, or exponential functions

• Add, subtract and OR up to 4 signals

• Generate analog signals from digital information (Gate / Clock)

• Generate digital information (Gate / Clock) from analog signals

• Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

• Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

• Apply Lag, Slew or Portamento to control voltages

• Change the depth of modulation and modulate backwards!

• Combine up to 4 control signals to create more complex modulations

• Musical Events such as Ramping up or Down in Tempo, on command

• Initiating Musical events upon sensing motion in the system

• Musical note division and / or Flam

• Perfect for modulating the DPO and just about anything else

Specifications

• Width:
  20hp
• Max Depth:
  24mm
• Power:
  60mA@ +12V
  50mA @ -12V
