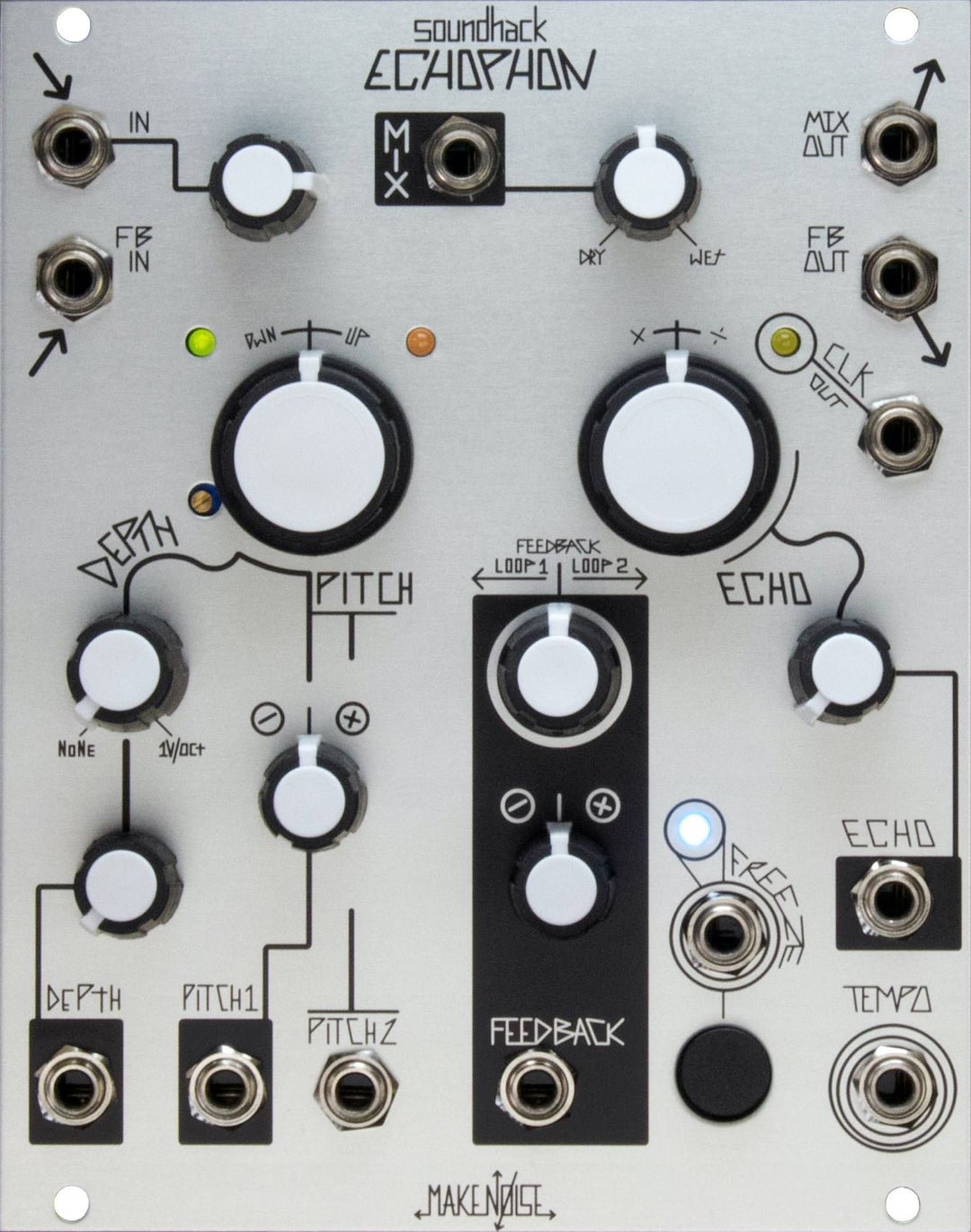

Pitch Shifting Echo with smooth Time Modulation, Tempo Sync, saturating Feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and lovingly engineered by DSP Guru Tom Erbe of soundhack . "...the most inspiring module of the year." -Electronic Musician.

• Shift Pitch of signal +/- 2 Octaves

• Exponential control of delay time -Maximum Time 1.7 Seconds, Minimum Time 7 ms

• Tempo input allows synchronization of Echoes to multiple or division of an external Clock

• Two independent internal digital Feedback paths (Loop 1 and Loop 2)

• External Analog Feedback Path for filtered or processed echoes

• FREEZE button/ gate input allows for hold, stutter and sampling techniques

• 24 bit ADC/DAC, 32bit processing, 16bit delay storage operating at 40khz

• Vactrol based Mix circuit for smooth blending of dry and wet signals

• All Analog Dry Signal Path

• Voltage Control over ALL parameters

• Pairs well with the Phonogene

Specifications

• Width:
  20hp
• Max Depth:
  30mm
• Power:
  70mA@ +12V
  40mA @ -12V
