Features

4 powerful channels of LFOs, Step Sequencing, Envelope Generation and Envelope Following, in limitless combinations.
user friendly interface with intuitive visual feedback.
an oscilloscope mode to visualize input signals: fine tune the extraction of triggers, select different modes, and smooth or scale envelope following.
full storage and recall of all parameters automagically before power cycling,
user definable waves for reusing complex individual channel settings.
64 storable, recallable, sequence-able, and randomize-able presets
only 14HP wide, packs loads of useful possibilities in a small space.

Product Description

Macro Machines presents an incredibly versatile new addition in the world of eurorack modules. The Omnimod will make a powerful new ally in your adventures through the universe of sound. Omni means all, and mod stands for modulation of control voltage.

Create unique new combinations of envelopes, LFOs and step sequences quickly and easily with the simple and intuitive waveform design interface. Centered around a crisp, high contrast OLED screen, the Omnimod provides vivid visual feedback for precise editing, as well as a scope mode to aid in configuring the inputs. This allows for deep, yet intuitive control over complex modulation sequencing. Endless possibilities become child’s play.

Once you have sculpted the perfect waveforms, you can store them for later, and recall them at any time in the future. You can also use the Macro Machines Storage Strip to allow multiple modules on the same power bus line to store and recall their settings at the same time, creating something never before possible in eurorack, instantaneous system wide storage and recall of entirely different configurations.

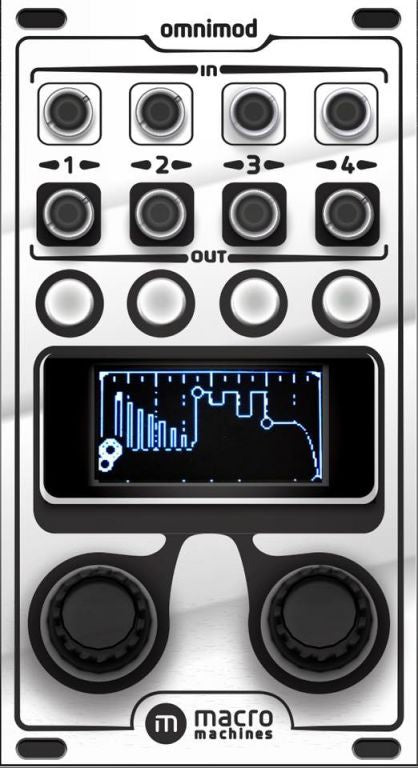

Located atop the beautiful OLED screen, there are four (4) inputs and four (4) outputs using the highest quality 1/8th inch jacks and four (4) eye catching white LED buttons that continually fade to show the output of each of the 4 channels. Below the screen are two encoders, the left encoder is stepped for parameter and point selection and the right encoder allows smooth parameter editing. This simple and quick to grasp control scheme will have you mastering this module quickly, manipulating and sculpting your own unique waveforms.

Settings are automatically saved between power cycles to easily resume where you left off. If used on the same power bus board as a Macro Machines “Storage Strip” module, several banks of settings can be stored, recalled and sequenced to allow even more possibilities from studio to stage.

http://macromachines.net/product/omnimod/
