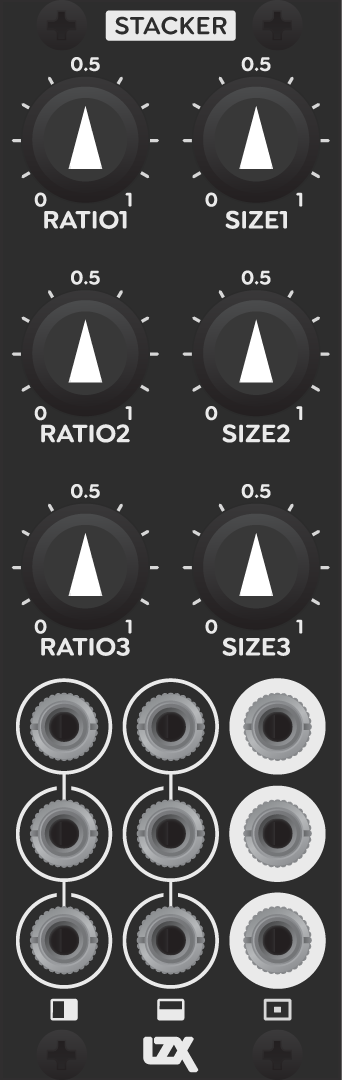

Stacker is a triple quadrilateral key generator and layer-priority encoder for your modular video synthesizer. Feed Stacker horizontal and vertical waveforms from DWO3, DSG3 or Angles to produce three stacked quadrilateral shapes on the outputs.
A quadrilateral key generator has 2 inputs (for horizontal and vertical reference waveforms and 4 thresholds (for the top, right, bottom, left borders.) Ratio & Size controls quickly define the 4 thresholds as a group.
Each key output is subtracted from the lower layers. This nesting doll effect allows programming of simple letterforms and icons.
When fed horizontal and vertical references from wave shapers, video cameras, and other complex sources, Stacker serves as a tool for extracting foreground details, tiles and mosaics.
Width, 8HP
Mounting Depth, 32mm
+12V @ 95mA
Rear DC Barrel Jack
Rear EuroRack 16 Pin Header
