Color
Regular price $82.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

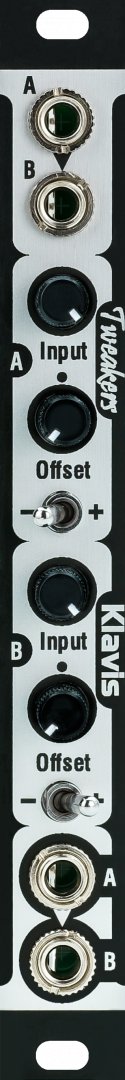

The Tweakers is a slim companion module that allows fine tuning your modulations. Two channels offer control over gain and offset. A three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset.

Normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets. Normalizing of the outputs offers an extra mixer, summing the two channels.

The Tweakers is a perfect companion for modules whose modulation inputs lack such amenities.Activating predefined settings at the flick of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful. It may come handy as an audio mixer too.

Two independent channels also usable jointly as a mixer or splitter
In each channel:

  • Input and output jack
  • Gain pot with up to 2.1 amplification
  • Bipolar offset pot
  • 3-position switch:
    • Inverted polarity
    • Channel off
    • Normal polarity
  • Offset setting is independent of the polarity switch
  • Normalized input A can distribute the signal in both channels
  • Normalized outputs can mix the two channels on out B
  • Usable for audio
  • Compact module
Dimensions
3 HP
33 mm deep
Current Draw
24 mA +12V
24 mA -12V
0 mA 5V
