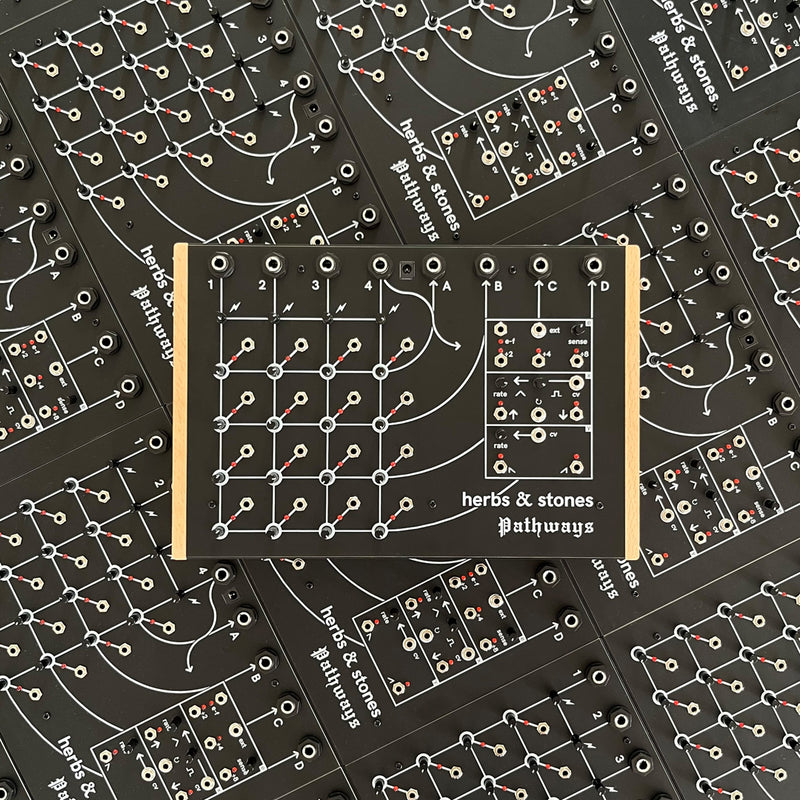

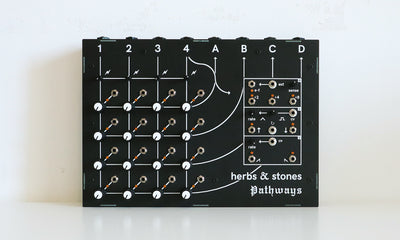

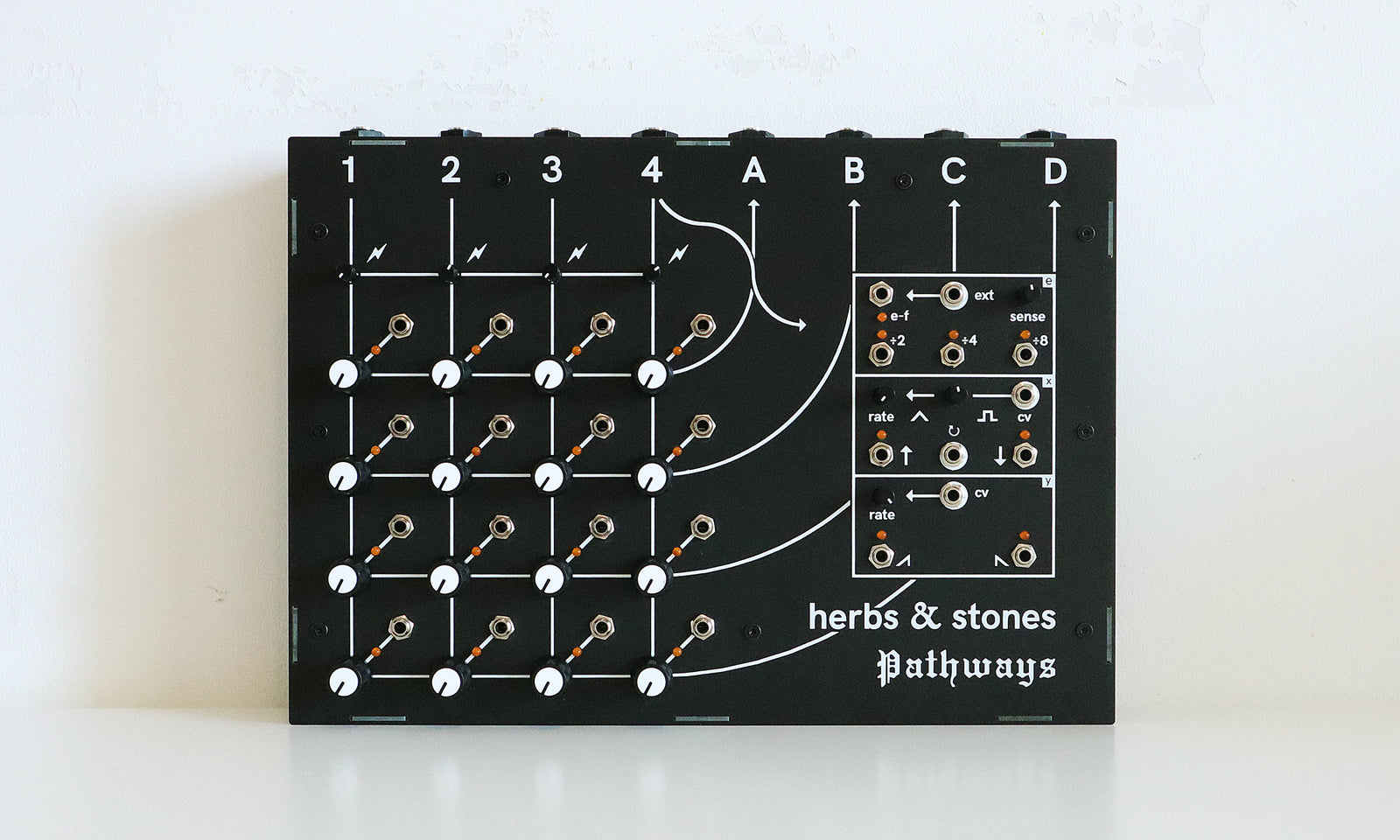

Pathways is a modular matrix mixer designed for feedback manipulation, creative routing, weird synthesis… and many other things.

Based around sixteen analog VCAs it can be the central hub of many different setups and a bridge between desktop gear and eurorack systems.

Features:

• 4x 1/4″ inputs with gain / drive control, 4x 1/4″ outputs

• Each of the 16 matrix intersections can be controlled manually or via CV, a dedicated LED gives visual feedback of the channel volume

• An envelope follower is normalled to input four, the signal then gets fed through a clock divider with three cascaded outputs. Willingly, an external signal can be inserted into the divider

• Two voltage controlled LFOs can modulate any parameter and create dynamic feedbacks, asymmetrical panning, tempo-related fx send/returns

• If patched into itself, each channel can self oscillate so it can be used as a polyphonic cv-controllable drone synthesizer

• full eurorack compatibility, each parameter has its own 1/8″ input jack

• Format: 1/4" audio jacks, eurorack
• Size: 29x21x6 cm
• Material: FR4
• Weight: 1,3 kg
• Power: 9V 500mA, center negative
