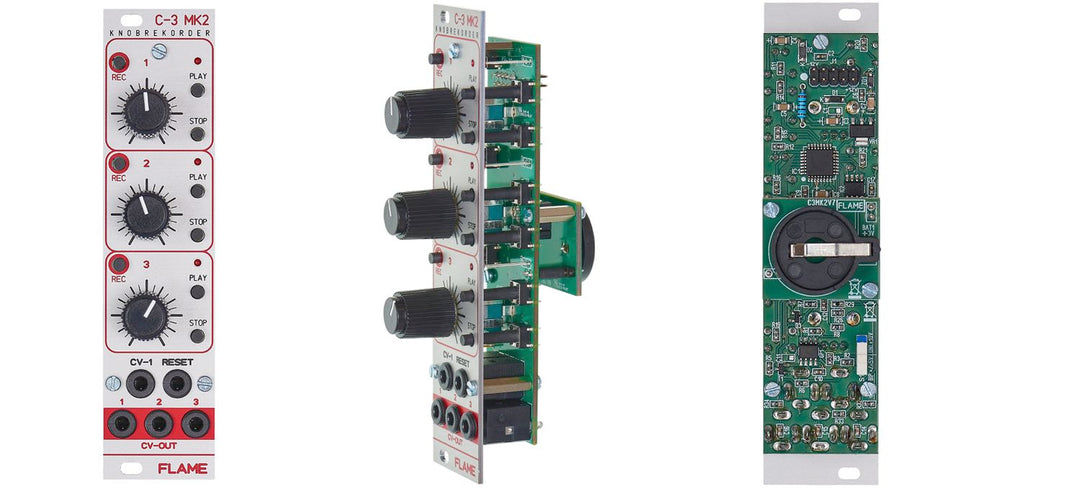

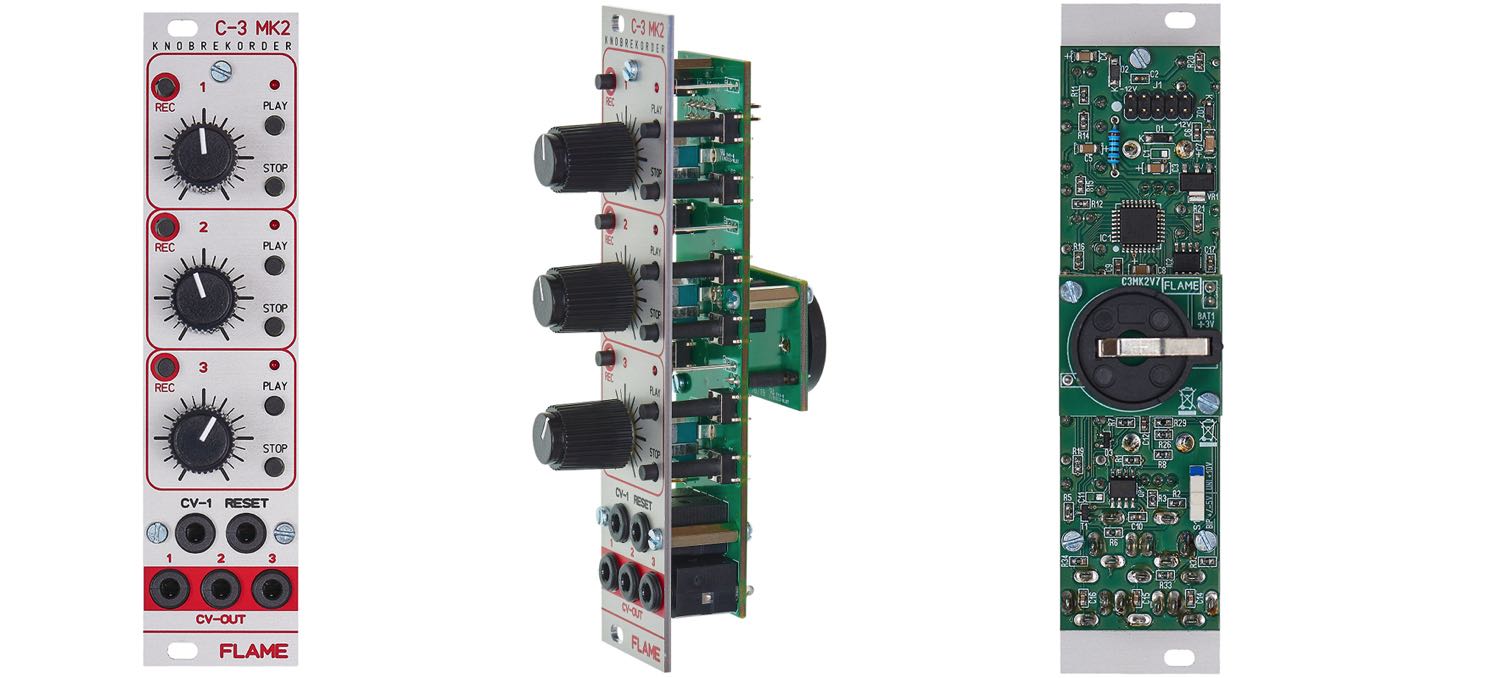

The FLAME "C-3 MK2" is a three-channel module for recording and playing back movements of controllers.
Those can be recorded with each channel´s individual knob. The movements will be output as control voltages.
The recording time per track is over one minute. The playback speed is adjustable.
All three tracks have a common reset input. The track data remains permanently stored (battery-backed memory).
The module can be globally switched to bipolar or unipolar voltage range (switch on the PCB).

technical details:

• 3 channels with each one control
• recording time per control: over one minute
• adjustable playback speed
• resolution 12Bit, sampling rate ca. 300 Hz
• modes: playback one shot or playback loop
• punch-in record
• switchable between playback and potentiometer
• non-volatile battery buffered memory
• global voltage range setting per jumper to bipolar +/-5v or unipolar 0-10v

inputs and outputs:

• 3 CV outputs bipolar +/-5v or unipolar 0-10v
• additional CV input on track 1: bipolar +/-5v or unipolar 0-10v
• common reset input for all three tracks
