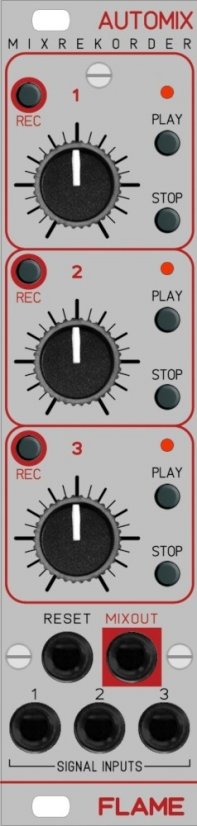

The "AUTOMIX" module is a compact three-channel mixer for audio or CV sources in the voltage range of + -5v (audio modular level).

The mix level of each track can be adjusted and recorded using the track's mix pot. The recording time per track is over one minute. The playback speed is also adjustable. The recorded track is played by pressing the Play button once (one shot) or by a longer press in the loop.

In addition, the 3 inputs can be separately switched to + 6db audio via the rear slide switch (for external line level sources). All three tracks have a common reset input. The track data remains permanently stored (battery-backed memory).

• 3 channels with recording time of max 102 sec
• 3 cv/audio inputs (-5v..+5v)
• audio input is switchable to line level (seperately for each input)
• resolution 12bit, sampling rate ca.250Hz
• modes: one shot, loop playback
• manually changeable playback speed
• non volatile memory (batteries come with it!)
• reset input for all 3 channels
