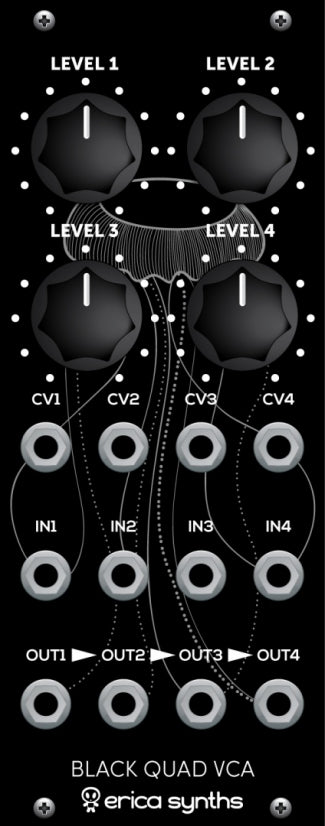

If you wish to shape the sound in advanced ways and you also want to save some rack space then Black Quad VCA is what you need!
This module despite its compact size is designed in line with Black Series Hi-Fi philosophy. Our custom pre-emphasis – de-emphasis circuits preserve all nuances of the original signal, we have introduced unique automatic mixing of outputs and configurable CV addressing. If no CV is applied, Black Quad VCA performs as a signal mixer, as well. Use it together with Erica Black Dual EG/LFO and you have compact, top quality setup!
Features:
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.
Technical specifications:
|
CV level |
-10V – +10V |
|
Attenuation level |
CV = 0V (max attenuation)…… -80dB CV = +10V (unity gain)………….. 0dB |
|
Response |
lin |
|
Power consumption |
+38mA, -32mA |
|
Module width |
10HP |
|
Module depth |
25mm |
