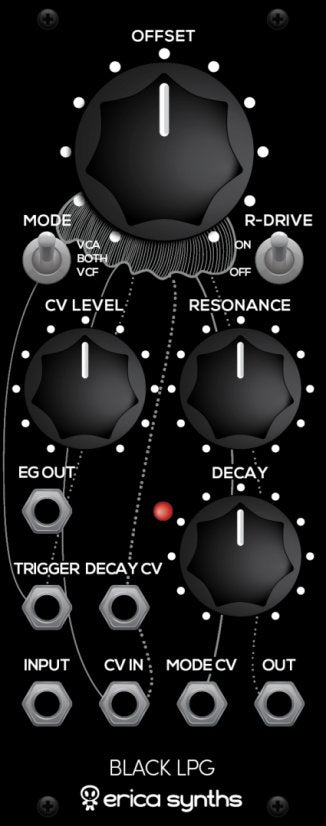

Erica Synths Black LPG is designed from scratch lowpass gate featuring 2nd order lowpass VCF and VCA combo with distinct resonance circuit on top. Voltage control over VCF cutoff frequency/VCA offset and mode (VCF/VCF+VCA/VCA), as well as built in decay envelope generator makes it a versatile module for sound shaping in any modular setup.
FEATURES:
Three vactors for 2nd order VCF
VCF/VCF+VCA/VCA modes
Manual and voltage controlled cutoff/offset
Manually and voltage controlled mode selection
Manually resonance depth control
Resonance overdrive switch
Built in decay envelope generator
Manually and voltage controlled decay time
Envelope CV output
Skiff-friendly design

• 10hp
• 44 mA +12V
• 45 mA -12V
• 0 mA 5V
• 25mm Depth
