Introducing the IR-200, the most advanced compact amp/IR solution available. This powerhouse stomp brings next-level performance to direct sound for guitar and bass, offering exceptional audio quality, premium amps, deep sound shaping, and instant sound recall with 128 memories. Over 150 hi-res cab impulse responses from BOSS and Celestion Digital are on board, plus 128 locations for loading your own mono or stereo IRs.

The IR-200 turns your pedalboard into a self-contained direct sound solution for live playing, studio recording, and practice. It delivers massive amp tones from a small footprint and smoothly integrates with all your favorite pedals, including stereo mod, delay, and reverb effects. And once you craft your tones, you can send them to a stage amp, house PA, computer recording system, or headphones—or all at once.

Pedal-based amp simulator and impulse response loader with premium sound and features
32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate
128 user IR slots with support for mono and stereo WAV files, up to 32-bit floating point/96 kHz resolution, and 200 or 500 ms length
Large onboard preset cab IR library with 144 BOSS IRs and 10 Celestion Digital IRs
Class-leading IR reproduction with two custom DSPs
Eight guitar and three bass amp types to cover a wide range of styles
Run up to two IRs at once in mono or stereo
128 memories for storing user setups
Two EQs in each memory plus two global EQs, all with selectable parametric or graphic operation
Room, Studio, and Hall ambience types
Effects loop with mono send and mono/stereo return, with selectable pre-cab or post-EQ positioning
Dedicated software for loading cab IRs and backing up memories
Versatile USB audio interface for recording and playback with music software on Mac and Windows computers and iOS devices
Deep external control support via footswitches, an expression pedal, and TRS MIDI

Specifications

Sampling frequency

96 kHz

AD Conversion

32 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

32 bits

Processing

32-bit floating point

Memory

128

IR cabinet data format

Mono/stereo, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point

Preset IR cabinet

154

User IR cabinet slot

128

Normal input level

INPUT, RETURN: -10 dBu
AUX IN: -20 dBu

Maximum input level

INPUT, RETURN: +7dBu
AUX IN: 0 dBu

Input impedance

INPUT, RETURN: 1 M ohm
AUX IN: 27 k ohms

Normal output level

OUTPUT (A/MONO, B), SEND, PHONES: -10 dBu

Maximum output level

OUTPUT (A/MONO, B), SEND, PHONES: +7dBu

Output impedance

OUTPUT (A/MONO, B), SEND: 1k ohm
PHONES: 44 ohms

Recommended load impedance

OUTPUT (A/MONO, B), SEND: 10 k ohms or greater
PHONES: 44 ohms or greater

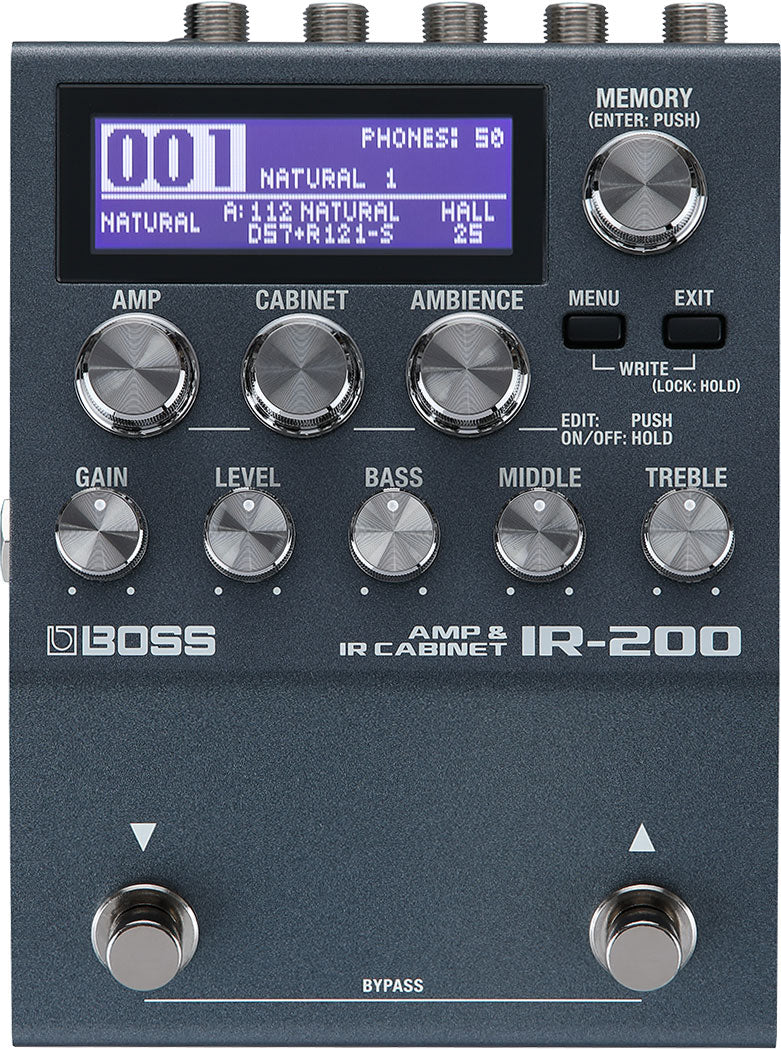

Controls

DOWN switch, UP switch
MENU button, EXIT button
MEMORY knob, AMP knob, CABINET knob, AMBIENCE knob
GAIN knob, LEVEL knob, BASS knob, MIDDLE knob, TREBLE knob

Display

Graphic LCD (132 x 32 dots, backlit LCD)

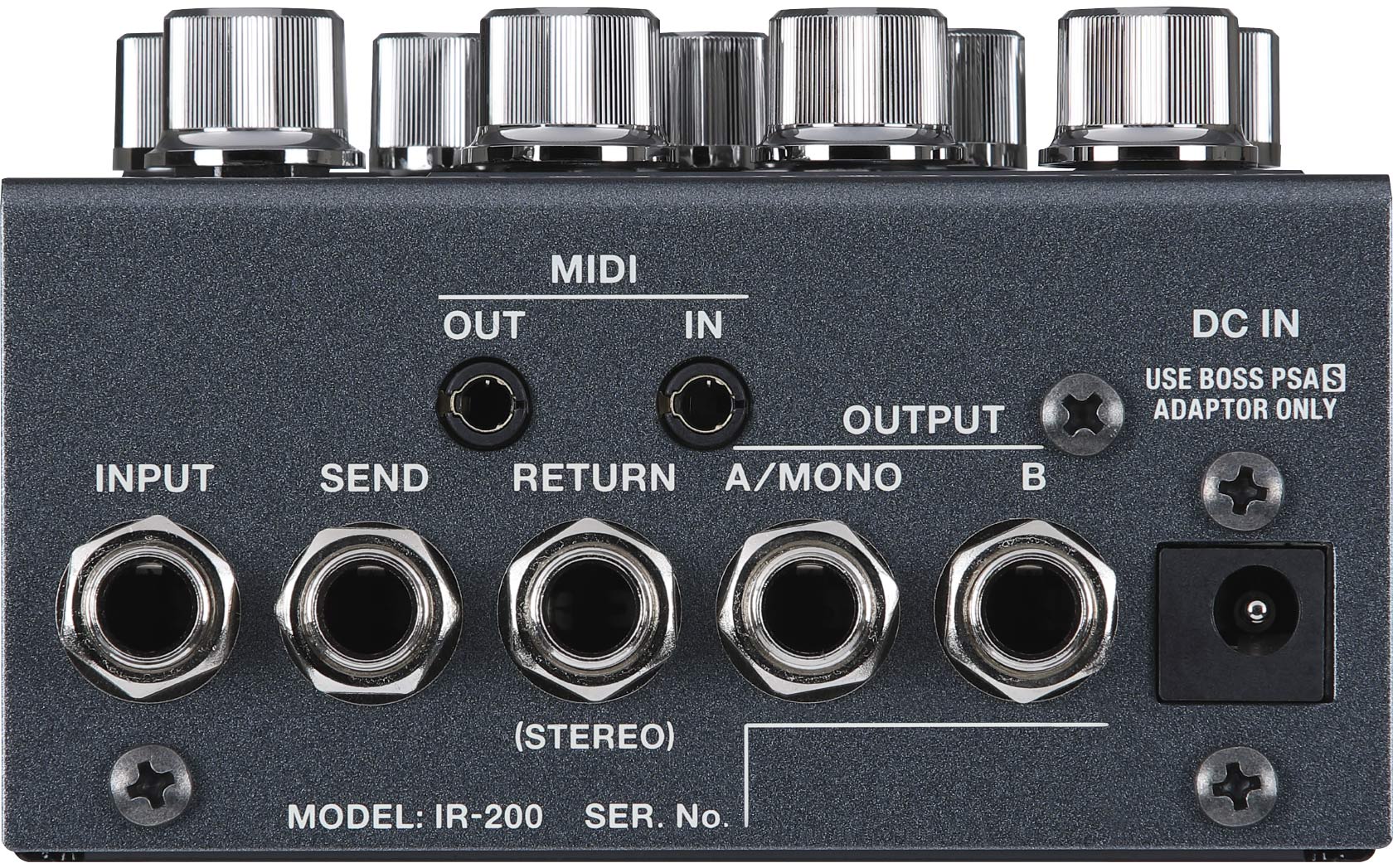

Connectors

INPUT, SEND, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
RETURN jack: 1/4-inch TRS phone type
AUX IN: Stereo miniature phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors: Stereo miniature phone type
USB COMPUTER port: USB Micro-B type
DC IN jack

Power supply

AC adaptor

Current draw

335 mA

Accessories

AC adaptor
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Rubber foot x 4

Options (sold separately)

Footswitch: FS-5U
Dual footswitch: : FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size and Weight

Width

101 mm
4 inches

Depth

138 mm
5-7/16 inches

Height

63 mm
2-1/2 inches

Height(including rubber feet)

65 mm
2-9/16 inches

Weight (excluding AC adaptor)

660 g
1 lb 8 oz
