BOREDBRAIN XCELON XP3 EXPANDER
Modular Mixing Expanded:

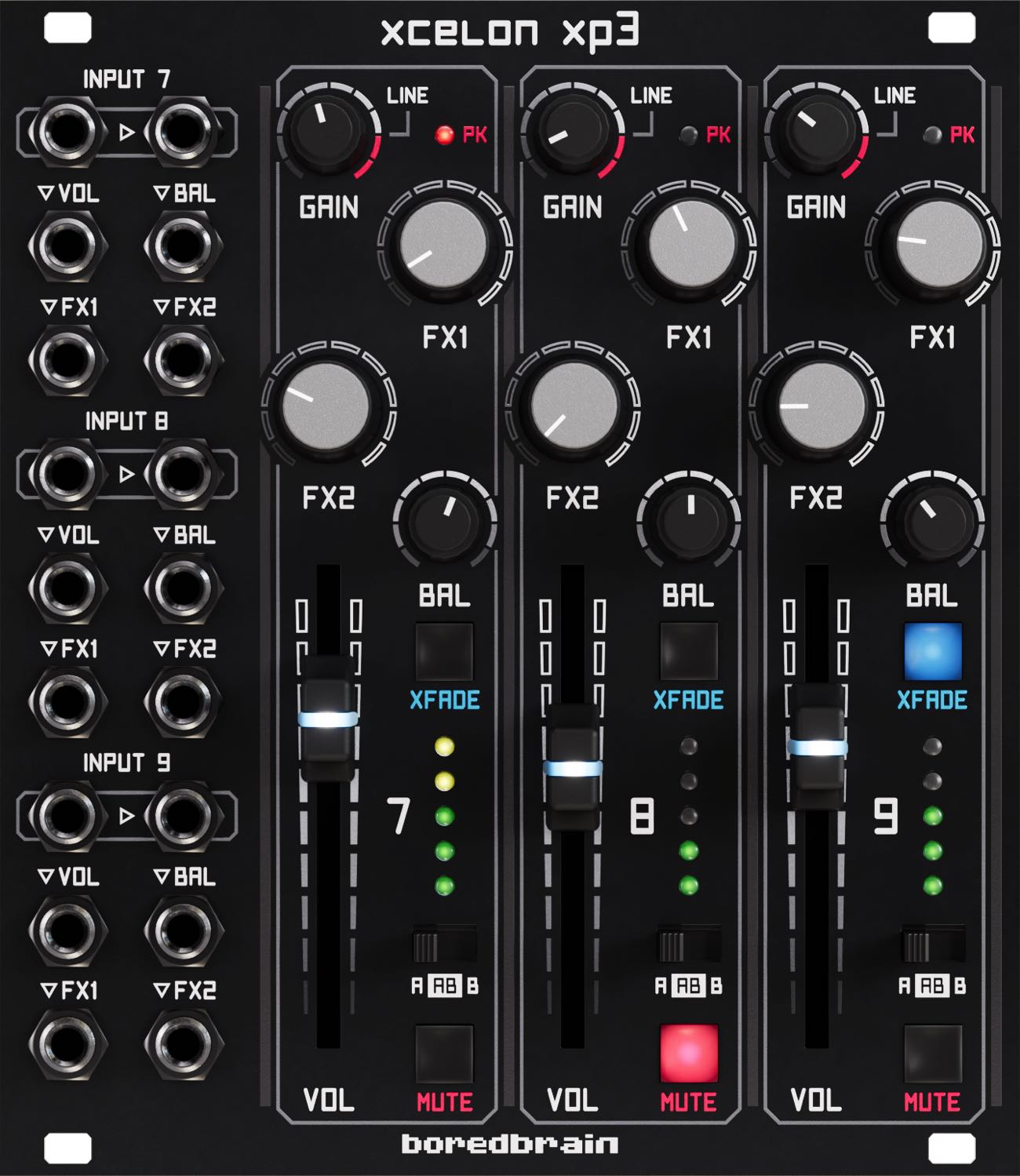

Xcelon XP3 is a three-channel stereo expander for the Xcelon eurorack mixer. The module’s channels are identical to those found on the main mixer. Up to two XP3 can connect to Xcelon, expanding the total number of mixer channels to either nine or twelve.
FEATURES:
Adds three stereo/dual-mono channels to Xcelon mixer (up to two expanders supported)
Two stereo FX sends and two stereo output mix busses selectable per-channel
Variable input gain for both modular and line-level sources
Long-travel volume faders with CV responsive LED indicators
Balance controls with pan law curve and dual-mono crossfade mode
Clickless mutes and VU meters on all channels
Twelve discrete control voltage inputs
Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode
TECHNICAL SPECS:
Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)
CV Inputs: 12 x 3.5 mm jacks
Input Impedance: 100 kΩ
Channel Input Gain: +15 dB
Width: 22 HP
Depth: 1.5 in (38 mm)
Weight: 11 oz (312 g)
Power: +12 V 190 mA (250 max), -12 V 150 mA
Xcelon XP3 is a three-channel stereo expander for the Xcelon eurorack mixer. The module’s channels are identical to those found on the main mixer. Up to two XP3 can connect to Xcelon, expanding the total number of mixer channels to either nine or twelve.
FEATURES:
Adds three stereo/dual-mono channels to Xcelon mixer (up to two expanders supported)
Two stereo FX sends and two stereo output mix busses selectable per-channel
Variable input gain for both modular and line-level sources
Long-travel volume faders with CV responsive LED indicators
Balance controls with pan law curve and dual-mono crossfade mode
Clickless mutes and VU meters on all channels
Twelve discrete control voltage inputs
Configurable jumpers for pre/post-fader FX and meters, plus volume VCA mode
TECHNICAL SPECS:
Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)
CV Inputs: 12 x 3.5 mm jacks
Input Impedance: 100 kΩ
Channel Input Gain: +15 dB
Width: 22 HP
Depth: 1.5 in (38 mm)
Weight: 11 oz (312 g)
Power: +12 V 190 mA (250 max), -12 V 150 mA
