Quantizer, Utility, Sequencer addon
Depth: 1.5 inches
Width: 4hp
Current: +30, -26mA

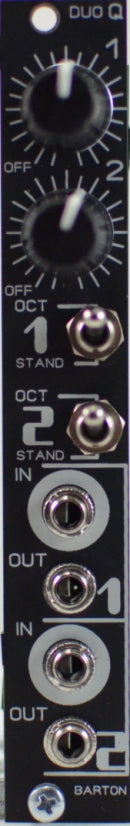

This is a quantizer based on the Michael Barton simple quantizer firmware PIC. There are two identical circuits found on this module. You can select two modes using the toggle switch. The 'Stand' mode is the standard mode which includes the follow scales:
STANDARD BANK
1.Bypass - Inputted voltage is outputted
2.Major - Root, 2nd, 3rd, 4th, 5th, 6th, 7th
3.Minor - Root, 2nd, flat 3rd, 4th, 5th, flat 6th, flat 7th
4.Major Pentatonic - Root, 2nd, 3rd, 5th, 6th
5.Minor Pentatonic - Root, flat 3rd, 4th, 5th, flat 7th
6.Blues Scale Root, flat 3rd, 4th, flat 5th, 5th, flat 7th
7.Whole Tone - Root, 2nd, 3rd, flat 5th, flat 6th, flat 7th
8.Chromatic - All 12 notes

The 'OCT' mode is the Octave BANK, which includes the following:
OCTAVE BANK
1.Bypass - Inputted voltage is outputted
2.Octave - Root
3.Octave and Fifth - Root, 5th
4.Octave and Flat Fifth - Root, flat 5th
5.Major Arppegio - Root, 3rd, 5th
6.Minor Arppegio - Root, flat 3rd, 5th
7.Dominant Arppegio - Root, 3rd, 5th, flat 7th
8.Chromatic

You use the knobs to select the different scales.
