Expansion module for the Quad Clock Distributor (QCD). The Expander turns the QCD into a programmatic non-linear sequencer, allowing you to easily create everything from self-patched evolving rhythms, to swing/shuffle patterns, to classic dance beats.

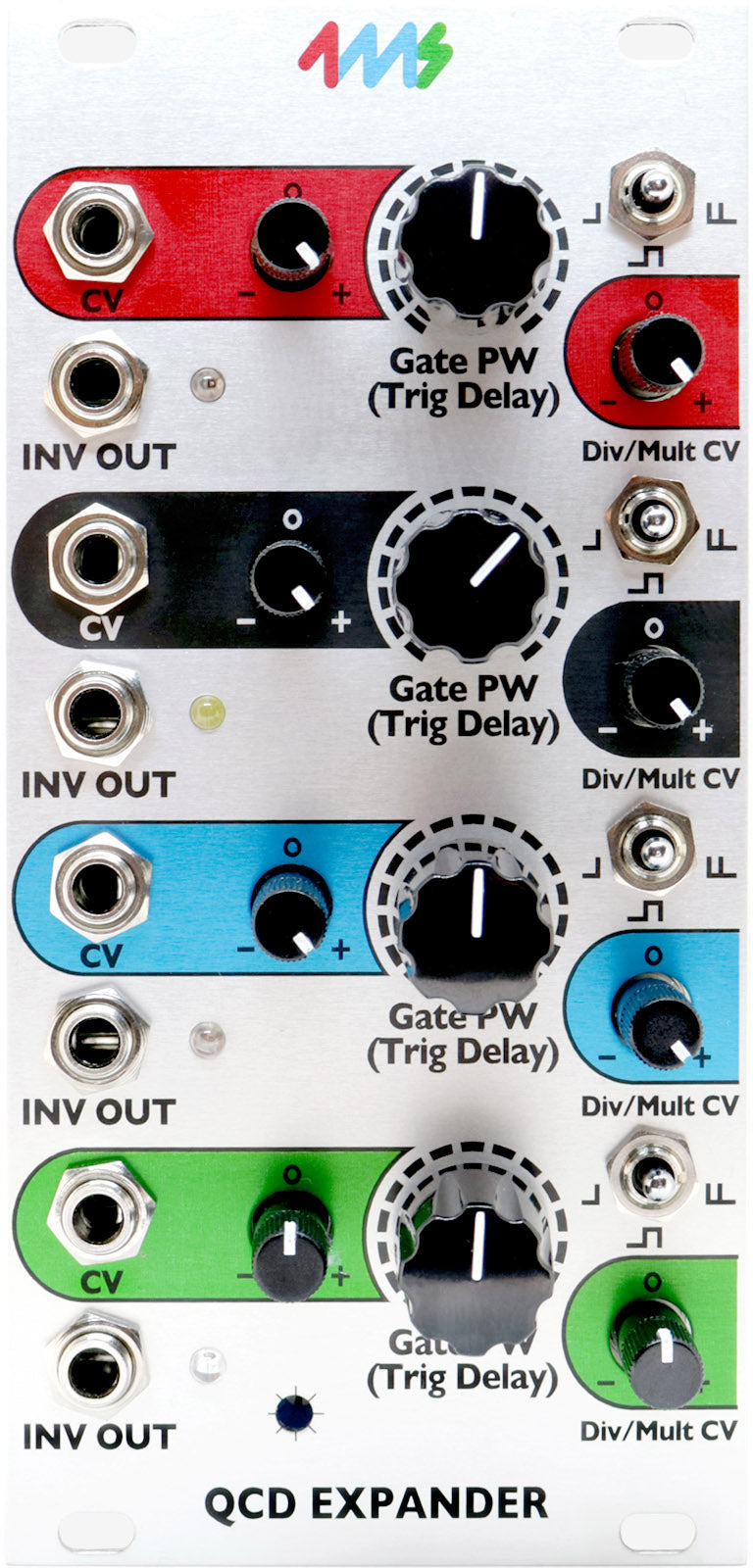

Each of the four channels has: * Multi-mode output jack INV OUT, which mirrors the tempo of main QCD output * Mode Switch for each INV OUT jack: --- Delayed Trigger Mode --- Inverted Gate Mode --- Shuffle Mode (delayed + original trigger) * PW/Delay knob controls trigger delay time on INV OUT jack (or pulse width in Inverted Gate Mode) --- Also controls Pulse Width of main QCD OUT jack --- CV input jack for external control --- Attenuverter allows for one channel to precisely modulate another channel's delay or pulse width * Div/Mult CV attenuator knob --- Controls how much the signal on the main QCD's Div/Mult CV jack will modulate the tempo --- Useful for precisely modulating the speed of one channel with another

A global LED brightness trimpot is accessible from the front panel.

http://4mspedals.com/qcd.php

• 12HP
• 44 mA +12V
• 30 mA -12V
• 25 mm Depth
