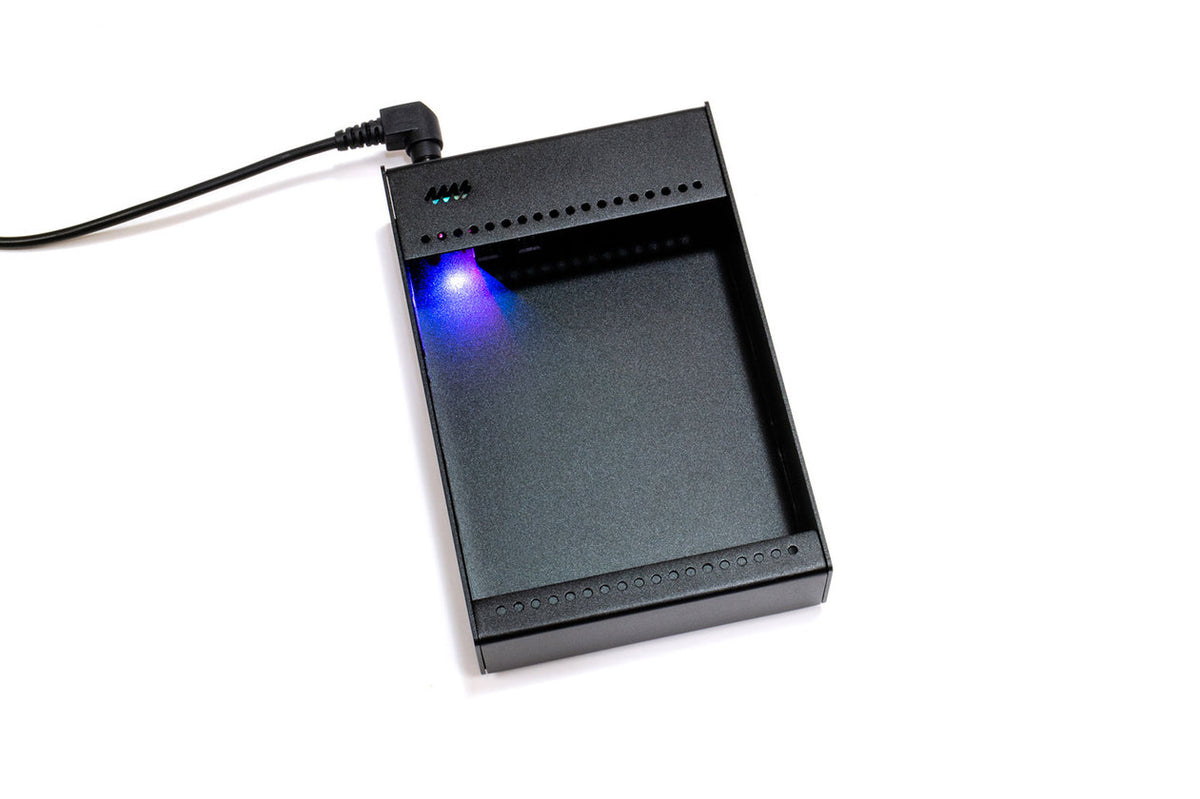

The Pod20 is a lightweight, portable, compact enclosure with 20HP Eurorack modular space and 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod20 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Overview:

Pods are a perfect way to get started in Eurorack module, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 700mA of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

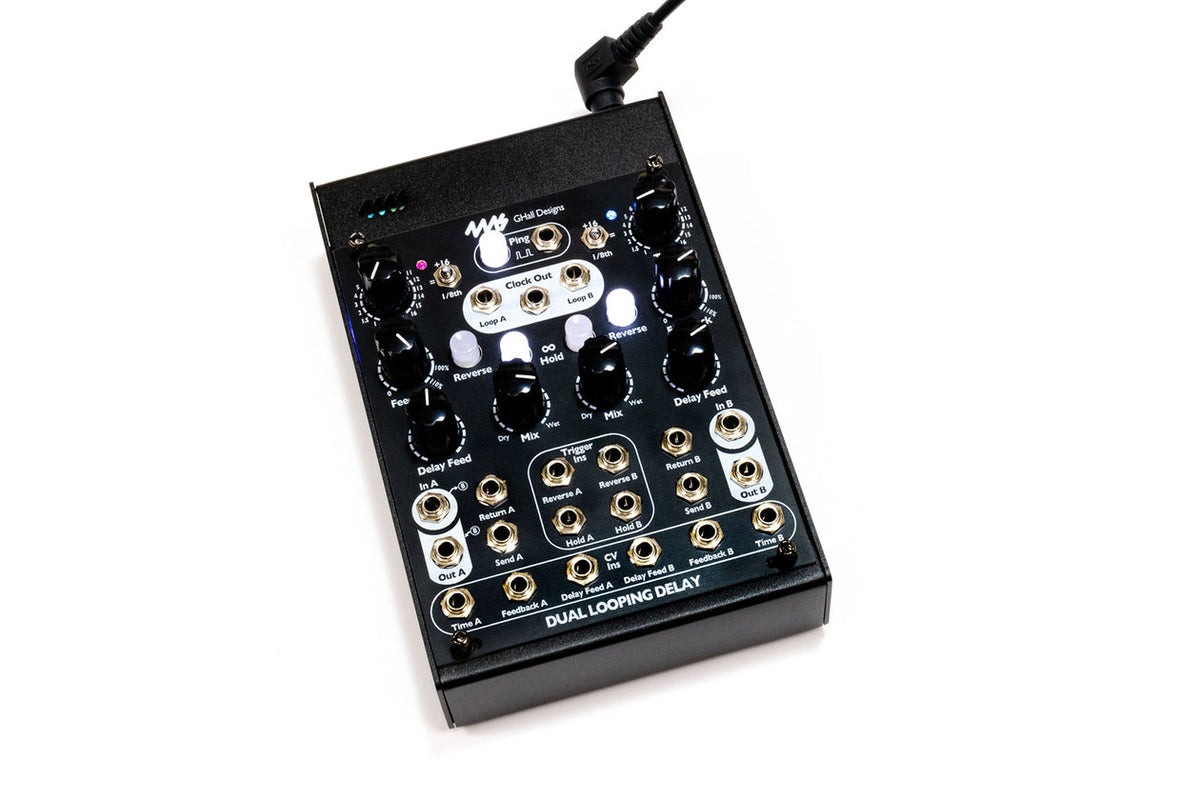

Each Pod typically will house one or two modules, but three or more can be accommodated using a multi-power cable accessory.

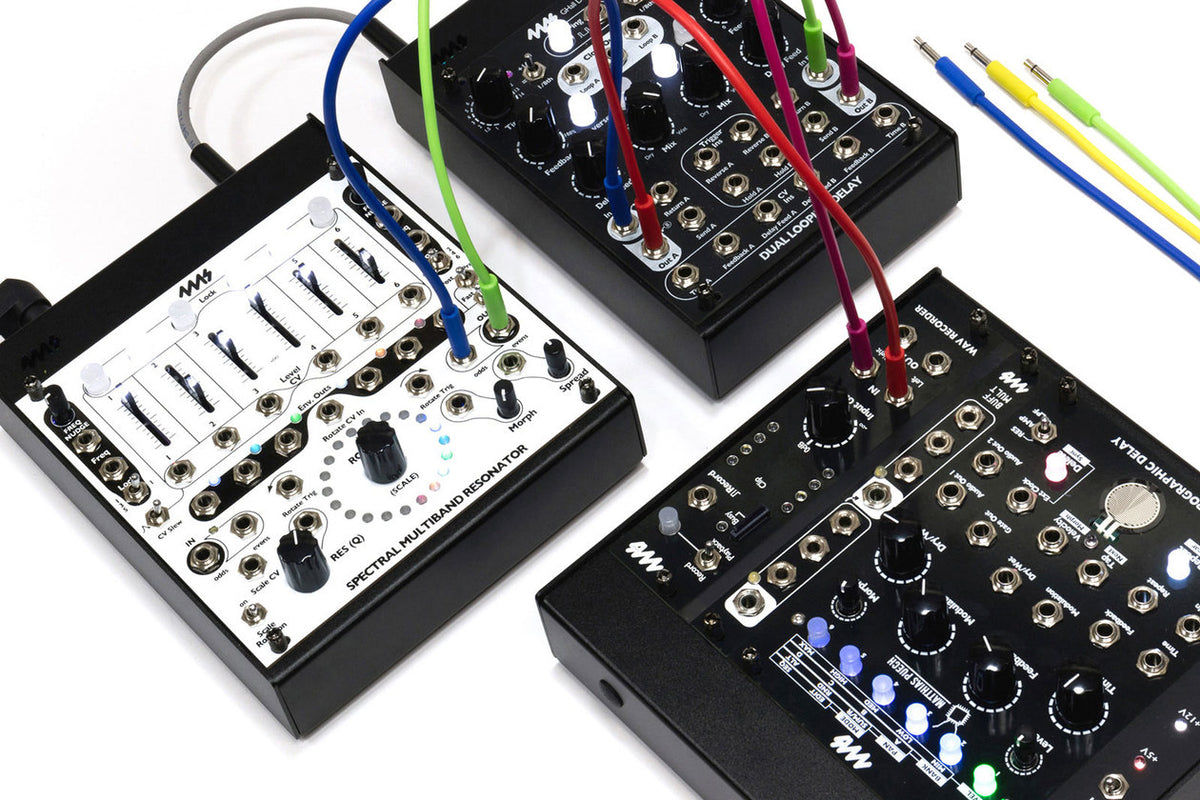

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Check the depth of your modules before purchasing as some modules may not fit in the POD20. For deeper Pods to house your larger modules check out the POD40X and the POD48X

Basic Features:

• 20 HP Eurorack modular space
• Standard M3 threaded holes
• 100% lightweight anodized aluminum
• Built-in Power supply

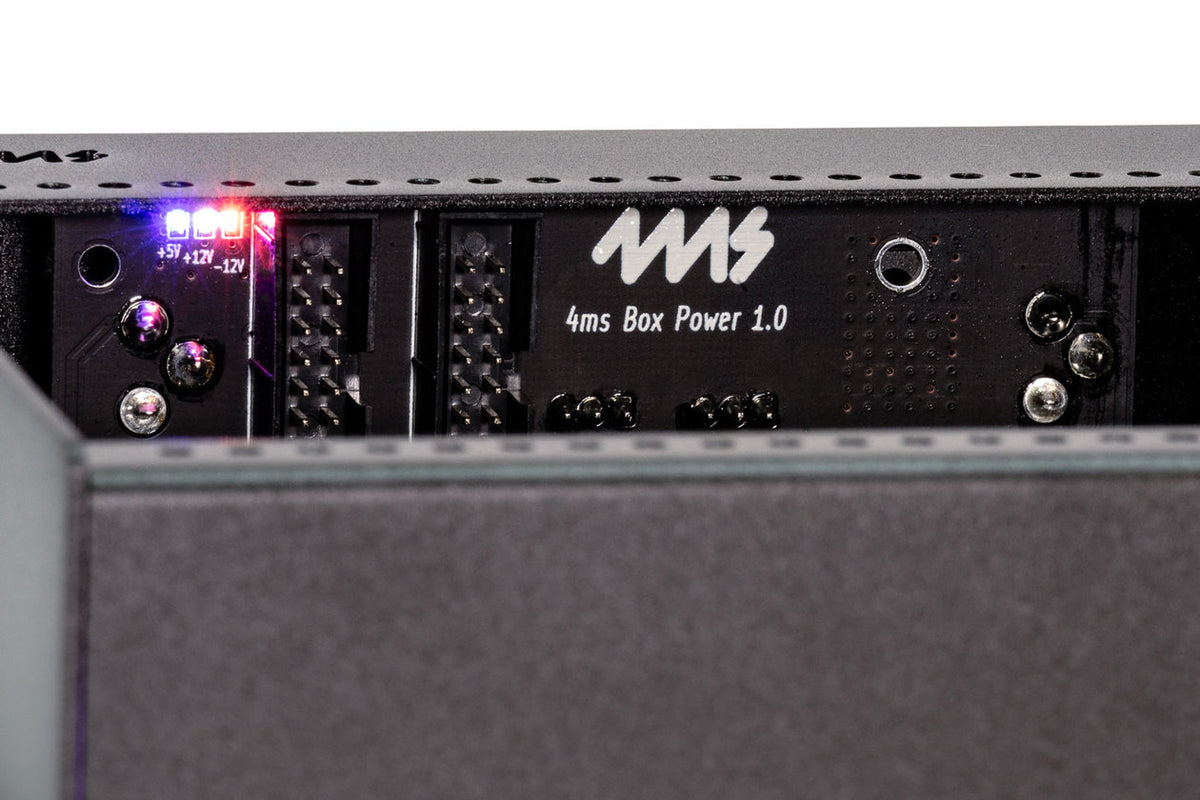

• Red, White, and Blue LED power indicators

Specifications:

Includes:

• 20HP Pod, black anodized aluminum
• Built-in power supply with two Eurorack power headers
• M3 x 8mm pan-head screws, stainless steel (10)
• Adhesive rubber feet (4)
• Does not include barrel cable or power brick

Power Supply:

• Two 16-pin Eurorack power shrouded headers
  • +12V max 0.7A
  • -12V max 0.28A
  • +5V max 0.2A

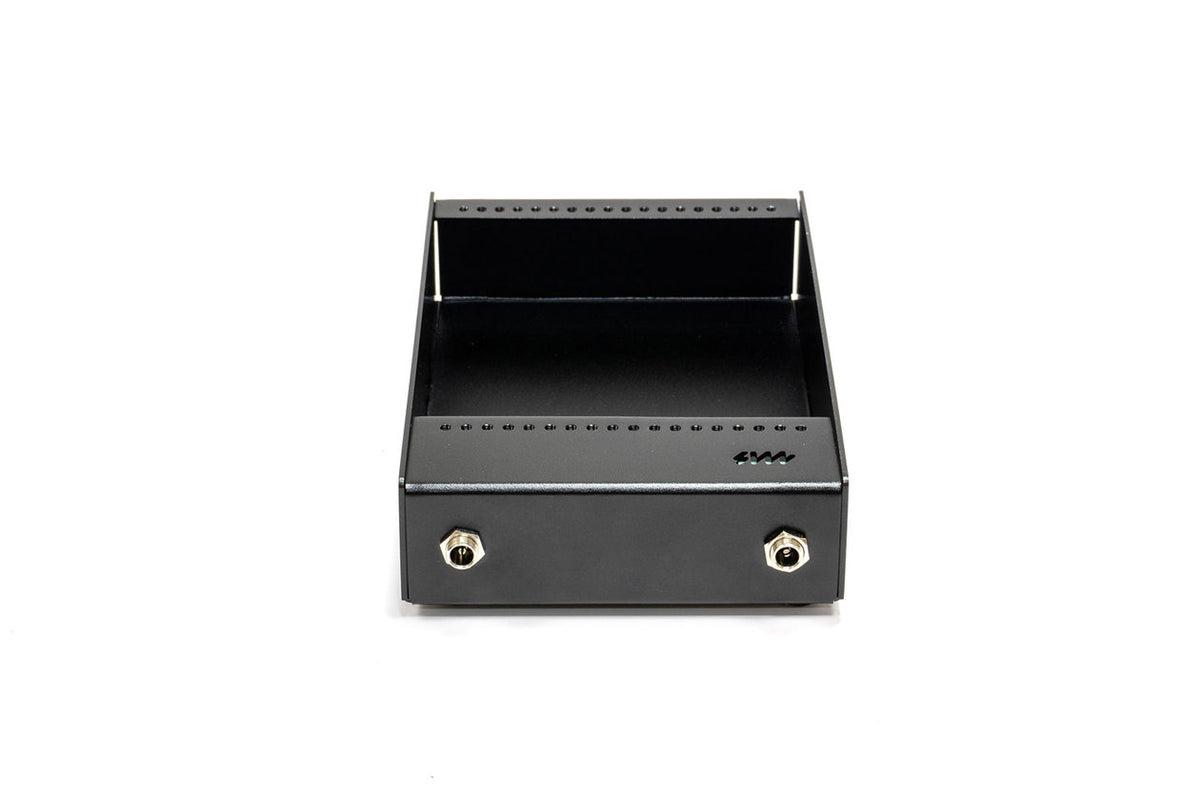

• Power input: Two barrel jacks for daisy-chaining
  • 15V-20VDC, 2.1mm positive tip

Exterior dimensions:

• Width: 106.1mm (4.18")
• Height: 159.5mm (6.28")
• Depth: 36mm (1.42")

Interior dimensions:

• Module depth: 34.2mm (1.34")
• Module width: 20HP

Weight:

• 0.17 kg = 6 oz
