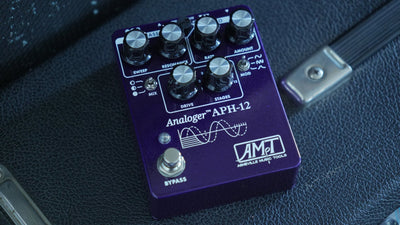

ASHEVILLE MUSIC TOOLS APH-12 12 STAGE PHASER
The Purple Phaze
Analoger Series APH-12:
100% Analog 12-Stage All-Pass Filter, Dynamic Phaser, Vibrato Pedal
The Analoger™ Series APH-12 is a 100% analog 12-stage phase shifter with deep functionality in a compact footprint. It delivers not only classic phaser tones, but many features and sounds not normally associated with traditional phasers. With a selectable number of all-pass stages from 1 to 12, and our signature control voltage processing, multiple flavors of modulation sit at your fingertips. The APH-12 delivers classic or extreme phase shifting, faux Leslie warble, vibrato and tremolo, vocal envelope followed filter funkiness, and striking multi-peak EQing. Designed by Hawker, this pedal continues the legacy of high stage count phasers and adds some surprises and special features to install Purple pHaze all in your brain.
Electrical Specifications
-
Type: 100% Analog signal, modulation and control path
-
Power: 9VDC @ <125mA. 70-100mA typical. Up to 200mA start up. Standard pedal center negative 2.1mm x 5.5mm barrel.
-
Input impedance: >1MΩ
-
Output impedance: 1KΩ Max
-
Maximum input signal: -10dBµ / 0.25VRMS = 1% THD, +1dBµ / 0.87VRMS = 10% THD
-
Maximum output signal: -0.9dBµ / 0.7VRMS
-
Noise Reduction: 12.5dB HF emphasis 3dB = 1.4kHz
-
Stage options: 8 Total, 1-12 stages: 1-6, 9, 12. Odd # = out of phase.
-
Sweep Range: Center 25Hz to 10kHz typical. 3Hz to <50kHz with use of LFO, Envelope or external Control Voltage.
-
Resonance: Off to self-oscillation using EXP input coupled with knob position.
-
Rate: LFO RATE, Type: Sine Wave. Slow <0.01Hz to 2.3Hz (3.3Hz with CV control). Fast <0.3Hz to 78Hz (~115Hz with CV control)
-
Envelope: Positive SWEEP control of modulation. Fast Attack, medium release.
-
Amount: LFO depth control from OFF to ~60% of SWEEP.
-
Drive: Up to 30dB of boost with increasing saturation and mid emphasis as gain is increased.
-
MIX Switch: 3 Position; Mix: FX/Mostly dry, 50/50, VIB/100% wet.
-
MOD Switch: LFO Selector: Fast, Slow, Envelope
-
Expression / CV: 4-way switch: Sweep, Regeneration, Rate or Amount external control additive to front panel knob, extending range. TRS jack usable with CV or Expression pedal, (CV range 0-5V). Ring supplied current limited ~5V output. Control input on Tip.
-
Bypass Footswitch: effect on/off. True Bypass: LED indicates LFO rate or Envelope pre-amount signal.
Physical Specifications
-
Genuine Hammond™ die-cast aluminum enclosure
-
Dimensions: D=4.95” (12.5 cm), W=3.75” (9.4 cm), H=2.25” (5.8 cm)
-
Weight: 14oz (425g)
Note: All specifications subject to change at the whim of our overlords
