MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI/architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.

Features

• Modular Reverb System architecture
• 8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity
• Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location
• Advanced ARM Processor
• Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing
• Intuitive Color Screen based User Interface
• Expressive Hold Modifier Switch for on the fly control
• 99 Preset Locations in 33 Banks
• Favorite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you route control signals to processing parameters
• New Independent Stereo Freeze alongside reverb
• Gate Envelope Controls for every reverb type
• All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more
• Selectable Note Divisions for each side of the stereo Predelay
• Digitally controlled Analog mix bus

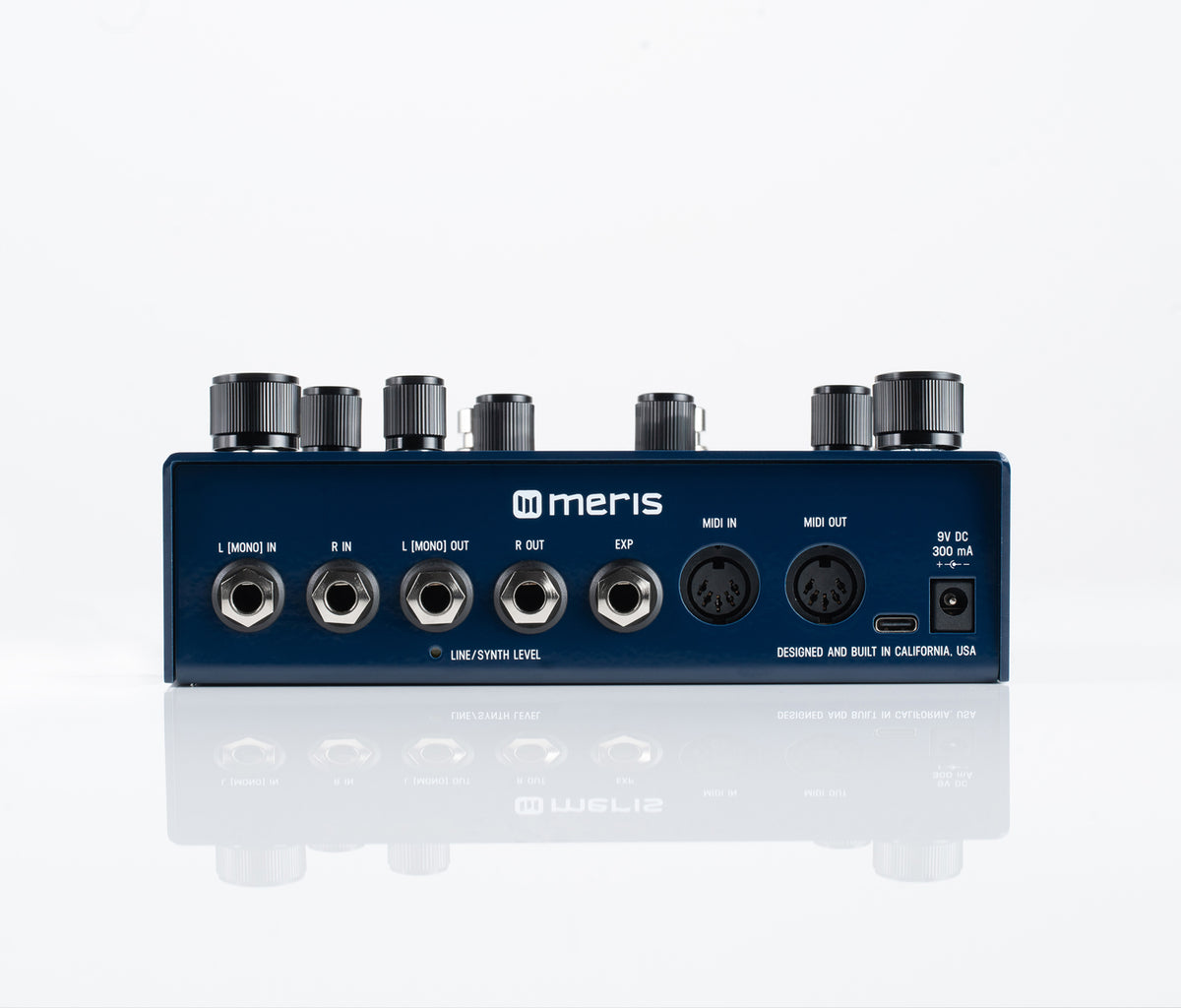

• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Color – Deep blue glossy coat
• Designed and built in California, U.S.A.

Specs

• Conversion 24 bit A/D and D/A
• DSP 32 bit floating point
• Sample Rate 48000 Hz
• Input Impedance 1 Meg Ohm
• SNR 115 dB Typical
• Frequency Response 20Hz-20kHz
• Max Input Level +9 dBu (instrument level setting)
  +12.5 dBu (line/synth level setting)
• Power 9V DC center-negative, 300mA, 2.1mm jack
• Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
• Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
• Weight 24 ounces
