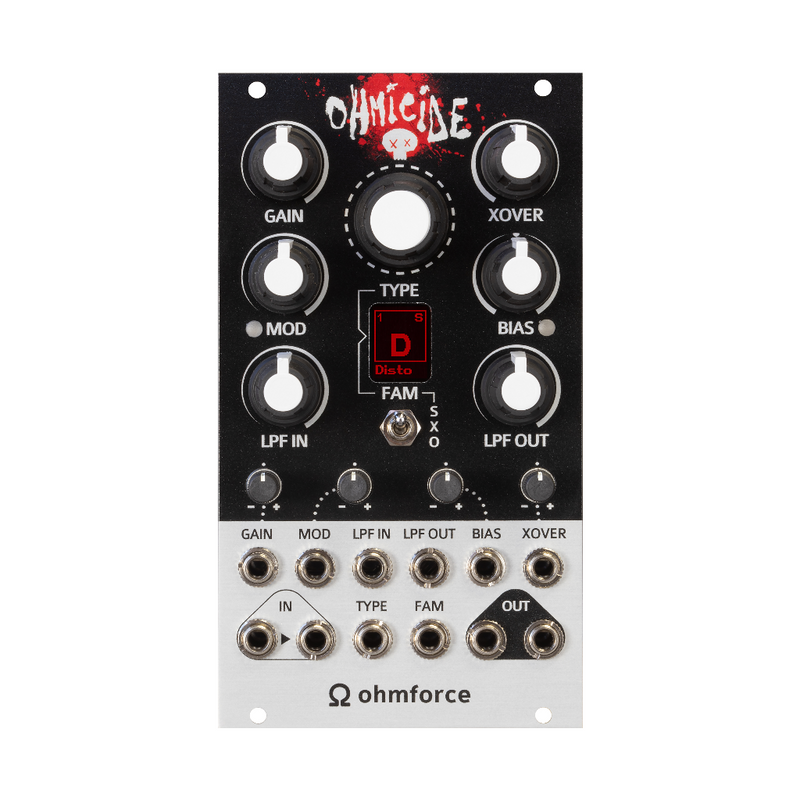

Ohmicide Eurorack is an adaptation of the legendary distortion plugin that defined the now well populated category of “shaper” effects. Amongst the numerous things that made it a hallmark plugin was the carefully crafted distortion library covering all things known and many more unknown. All of those 111 distortions are now ready to burn your finger tips in a remarkably versatile module delivering huge sonic possibilities, and let you change the texture of your VCOs, drums and samples in subtle or brutally unsubtle ways. Use all sorts of distortions, including bitcrusher, freezer, filtering and jellyfish variety.

Technical Specs

General

• Width: 14HP

• Height: 3U

• Depth: 26mm with power connector

• Power Consumption: +12V=120mA, -12V=10mA, +5V=0mA




Audio

• Sample Rate: 48kHz

• Hardware audio converters bit-depth: 24-bit

• Internal processing bit-depth: 32-bit floating point

• True Stereo Audio

• High fidelity Texas Instruments Burr-Brown audio converters




Controls

• Knob resolution: 16-bit (65536 distinct values)

• CV inputs

  • Voltage: +5V (0..5V compatible)

  • Resolution: 16-bit (65536 distinct values)

Memory

• Current distortion type, screen contrast and saver mode, TYPE and FAM CV +5V or 0..5V options

• 16 sequences

  • 8 steps, each step being a snapshot of all knobs and switches

  • All knob options

  • Sequence length

  • Step reset mode

USB Port

• Type: Micro-B

  • The USB port is only used to update the module firmware.
